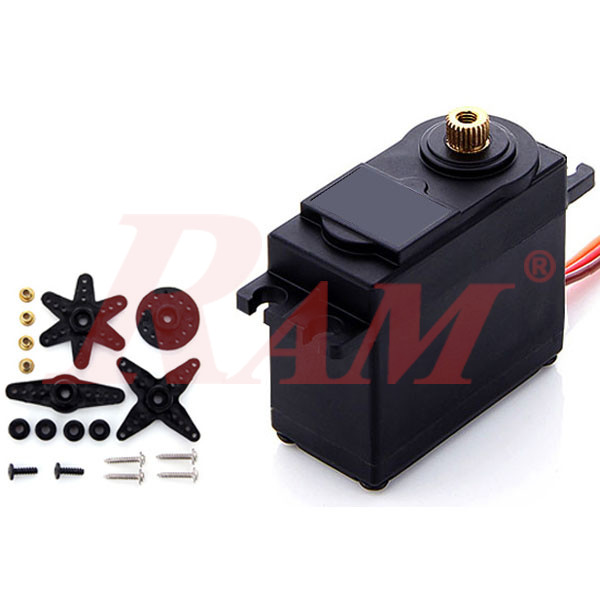

FS5115M Servo Motor 180° 15.5 kg.cm Metal Gears

https://www.ram-e-shop.com/web/image/product.template/7124/image_1920?unique=e133d2a

High-Quality Servo 180 Degree

850.00 EGP 850.0 EGP 850.00 EGP 1,000.00 EGP

850.00 EGP 1,000.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: SERVO.FS5115M

Electrical Specification

Item
Specification
Specification
Operating Voltage
4.8V
6V
No Load Speed
0.25sec / 60° (40RPM)
0.2sec / 60° (50RPM)
Running Current (no load)
180mA
220mA
Stall Torque (at locked)
14 kg.cm
15.5 kg.cm
Stall Current (at locked)
1.3A
1.7A
Idle Current (at stopped)
6mA
6mA
Input Voltage
4V - 8.4V
4V - 8.4V
Rated Torque
4.5kg.cm
5kg.cm
Rated Current
450mA
600mA
Kt
9kg.cm/A
9kg.cm/A

Mechanical Specification

  • Size: 40 x 20 x 38.9 mm
  • Limit Angle: 200°
  • Case Material: PA+Fiberglass
  • Gear Material: Copper
  • Bearing Type: Ball bearings
  • Angle Sensor
    • Type Carbon-Film Potentiometer
    • Angle 220°
    • Life 1000000Cycles Min
  • Horn Type: 25T/5.9mm
  • Command Signal: Pulse width modification
  • Control System Type: 180° (at 500→2500μsec)
