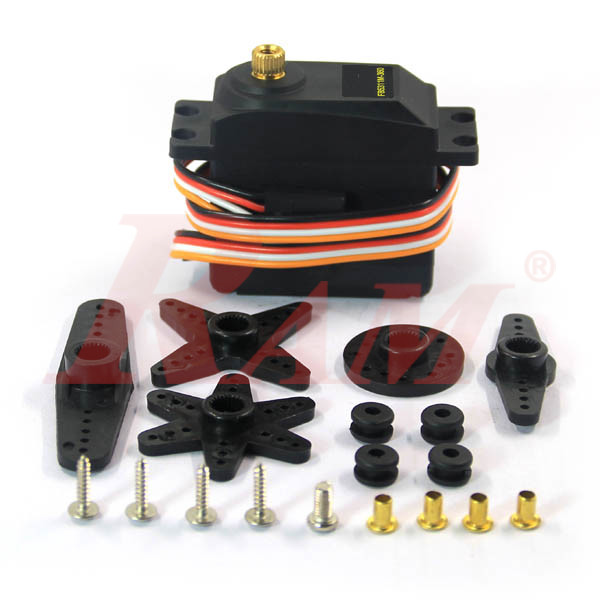

FB5311M Digital Servo Motor 360° Continuous Rotation Analog Feedback with Magnetic Encoder 15.5 kg.cm

https://www.ram-e-shop.com/web/image/product.template/7730/image_1920?unique=e133d2a

High-Quality Servo 360 Degree Metal Gears

950.00 EGP 950.0 EGP 950.00 EGP 1,250.00 EGP

950.00 EGP 1,250.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: SERVO.FB5311M.360

Electrical Specification

Item
Specification
Specification
Operating Voltage
4.8V
6V
No Load Speed
40 RPM
50 RPM
Running Current (no load)
150mA
200mA
Stall Torque (at locked)
13 kg.cm
15.5 kg.cm
Stall Current (at locked)
1.3A
1.7A
Idle Current (at stopped)
6mA
6mA
Input Voltage
4V - 8.4V
4V - 8.4V
Rated Torgue
4kg.cm
5kg.cm
Rated Current
450mA
650mA
Kt
8kg.cm/A
8kg.cm/A

 Mechanical Specification

  • Size: 40 x 20 x 38 mm
  • Gear Type: Copper gears
  • Limit Angle: No Limit
  • Bearing: 2 Ball bearings
  • Horn Gear Spline: 25T/5.9mm
  • Horn Type: Plastic, POM
  • Motor Case: Nylon & Fiberglass
  • Command Signal: Pulse width modification
  • Amplifier Type: Digital comparator
  • Operating Travel: 360°Continuous rotation (at 500→2000μsec)
  • Left & Right Travelling Angle Deviation: No
  • Centering Deviation: No
  • Neutral Position: 1500 μsec
  • Pulse Width Range: 1000→2000 μsec
  • Feedback Voltage: 0V - 3.3V For 0°~ 360° (when 1500~2000 μsec)
  • Running Degree: 360° Continuous rotation
  • Dead Band Width: 1500±20 μsec (Stop Pulse Width) ≤40 μsec
  • Rotating Direction:
    • Clockwise (when 1500~2000 μsec)
    • Stop (1500 ±20 μsec)
    • Counterclockwise (when 1500~1000 μsec)
