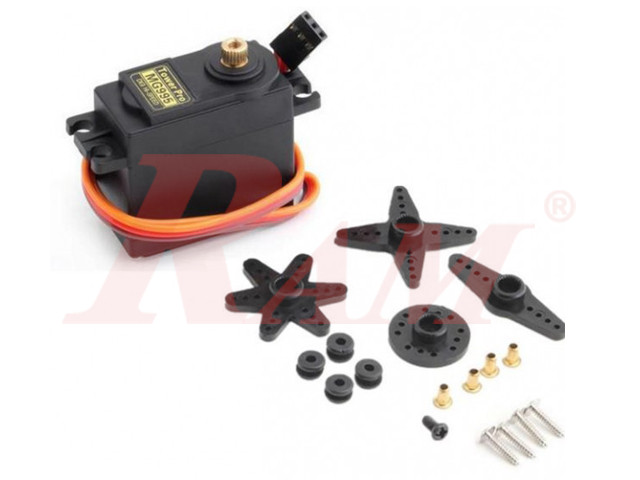

MG995 Servo Motor 180° 10 kg.cm Metal Gears

https://ram-electronics.odoo.com/web/image/product.template/7221/image_1920?unique=6b2e754

Common model Servo 180 Degree

190.00 EGP 190.0 EGP 190.00 EGP

190.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: SERVO.MG995.180

Description:

  • Item Name: MG995 Metal Gear Servo
  • Dimension : 40 x 19x 43mm
  • weight: about 69g
  • Operating Speed: 0.17sec / 60 degrees (4.8V no load)
  • Operating Speed: 0.13sec / 60 degrees (6.0V no load)
  • Stall Torque: 13 kg-cm (180.5 oz-in) at 4.8V
  • Stall Torque: 15 kg-cm (208.3 oz-in) at 6V
  • Operation Voltage: 4.8 - 7.2Volts
  • Gear Type: All Metal Gears

Features:

  • Compliant with most standard receiver connectors: for Futaba, Hitec, Sanwa, GWS, etc...
  • Great for trucks, boats, and Racing cars.
  • Power Supply: Through External Adapter.
  • Stable and Shock Proof. - Coreless Motor - Metal Gear - Double Ball Bearing -
  • Connector Wire Length 300mm

Connection :

  • Orange: PWM
  • Red: VCC
  • Brown: GND
