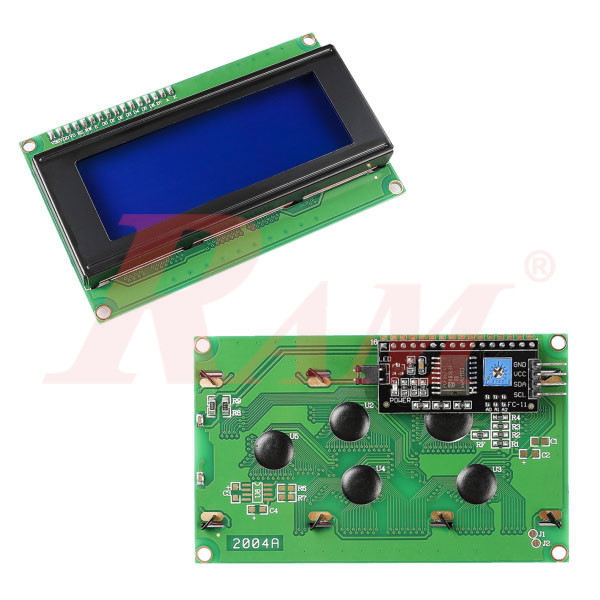

IIC/I2C 2004 Serial Character LCD 4x20 Display
Internal Reference:
LCD.I2C.4X20.BLUE
The IIC/I2C 2004 serial character LCD 4x20 display is a character LCD with 4 lines of 20 characters, a blue backlight and an I2C module soldered onto it. It works at a 5V operating voltage and connects through four pins: GND, VCC, SDA and SCL.
I2C 2004 LCD 4x20: Overview
- Character LCD 4x20 with blue backlight + I2C soldered with it.
- LCD Characters Display 20x4 blue color, 5V operating voltage.
4x20 Character LCD With I2C: Pin Connections
- GND: Ground
- VCC: Voltage supply, 5V.
- SDA: Serial data line. Connect to VCC through a pullup resistor.
- SCL: Serial clock line. Connect to VCC through a pullup resistor.
Blue Backlight LCD 20x4: Choosing the Right Character LCD
This blue backlight LCD 20x4 shows 4 lines of 20 characters. If you need a smaller display with 2 lines of 16 characters, see the IIC/I2C 1602 serial character LCD 2x16 display. If you prefer a 4x20 display without the I2C module, see the Character LCD 4x20 Blue 2004. For a graphic I2C display, see the 0.96" OLED I2C display module, or browse all character LCD modules.
Frequently Asked Questions
How many characters does the 4x20 LCD show?
It shows 4 lines of 20 characters.
What voltage does the I2C 2004 LCD use?
It has a 5V operating voltage.
Which pins does the I2C 4x20 LCD have?
It has four pins: GND (ground), VCC (5V supply), SDA (serial data line) and SCL (serial clock line).
Does the I2C LCD need pull-up resistors?
SDA and SCL should each be connected to VCC through a pullup resistor.
Is the I2C module included on the LCD?
Yes. The I2C module is soldered onto the character LCD 4x20.
What is the backlight color?
The backlight color is blue.
The IIC/I2C 2004 serial character LCD 4x20 display gives you 4 lines of 20 characters with a blue backlight and a soldered I2C module, using a 5V supply and four pins. If you are building a display for your engineering graduation projects this term, RAM Electronics offers the IIC/I2C 2004 serial character LCD 4x20 display in Egypt along with other character LCDs. Contact us if you need help choosing the right LCD for your project.
