Product Description

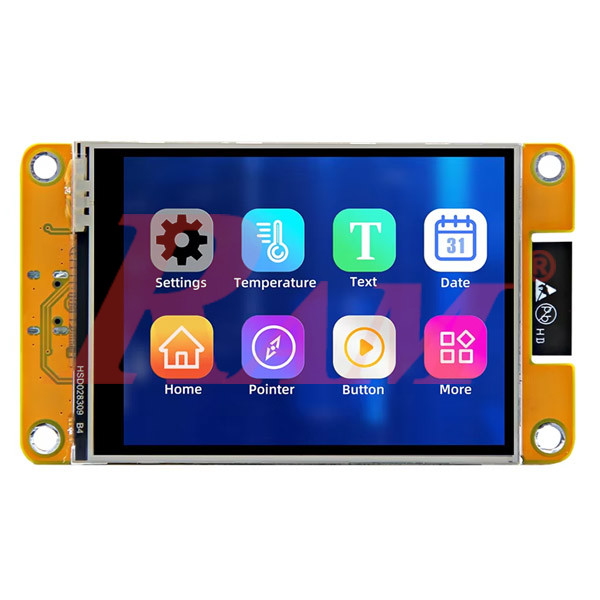

This 2.8-inch ESP32 TFT touch display module (ESP32-2432S028R) combines a powerful ESP32-32E WiFi + Bluetooth microcontroller with a high-resolution TFT LCD and resistive touch screen. Designed for advanced embedded projects, it delivers fast processing performance, excellent graphical display quality, and reliable touch interaction.
Featuring a 240×320 pixel TN TFT screen, ILI9341V display driver, XPT2046 touch controller, and 4-line SPI interface, the module ensures smooth visuals and responsive control. Built-in 3.7V lithium battery charging support and compact size make it perfect for handheld devices, IoT interfaces, smart home products, test equipment, and DIY development.
This all-in-one ESP32 display module allows developers to reduce wiring, save space, and speed up prototyping — ideal for projects that demand wireless connectivity, user interaction, and visual output.
Key Features
- Integrated ESP32-32E WiFi + Bluetooth MCU
- 2.8-inch TFT LCD, 240×320 resolution
- Resistive touch screen with XPT2046 controller
- Bright display with 262K color support
- 4-line SPI interface for fast communication
- Built-in lithium battery charging circuit
- Compact module size — perfect for portable projects
- Wide operating temperature range
Technical Highlights
- CPU: Dual-core 32-bit 240MHz
- Flash: 4MB external QSPI
- Wireless: 2.4GHz WiFi + BT 4.2 LE
- Display driver: ILI9341V
- Touch driver: XPT2046
- Working voltage: 5V (charging) / 3.0–3.6V (module)
- Battery type: 3.7V Li-Po supported
MORE DATA for the module:
ESP32 Parameters
- Module: ESP32-32E
- CPU: ESP32-D0WD-V3, Xtensa dual-core 32-bit LX6 microprocessor
- Frequency: 240MHz (Max)
- Memory: 48KB ROM + 520KB SRAM + 16KB RTC SRAM + 4MB external QSPI Flash
- Wi-Fi: 2.4GHz, 802.11 b/g/n
- Bluetooth: Bluetooth V4.2 BR/EDR & LE
- Operating Voltage: 3.0–3.6V
- Operating Temperature: −40°C to +85°C
LCD Parameters
- Panel Size: 2.8 inch
- Type: TN TFT
- Resolution: 240 × RGB × 320 pixels
- Active Area: 43.20(W) × 57.60(H) mm
- Colors: 262K (RGB666) max / 65K (RGB565) common
- Driver: ILI9341V
- Interface: 4-line SPI
- Pixel Size: 0.153(H) × 0.153(W) mm
- Brightness: 260 cd/m²
- Backlight: White LED × 4
- Operating Temp: −10°C to +50°C
- Storage Temp: −20°C to +60°C
Touch Screen Parameters
- Size: 2.8 inch
- Type: Resistive
- Resolution: 240 × 320 pixels
- Driver: XPT2046
- Visual Area: 45.20(W) × 59.45(H) mm
- Interface: SPI
- Material: ITO film + ITO glass
- Operating Temp: −10°C to +60°C
- Storage Temp: −20°C to +70°C

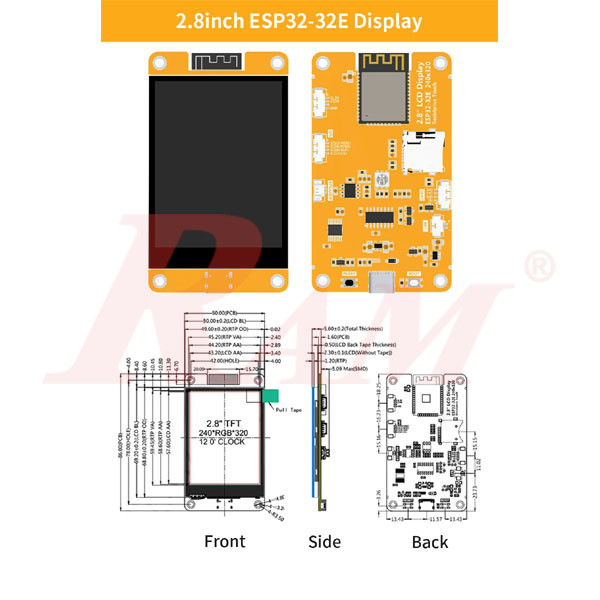

Size Parameters
- LCD Outline Size: 50.00(W) × 69.20(H) × 2.3(D) mm
- Touch Screen Outline Size: 49.60(W) × 68.80(H) × 1.20(D) mm
- Module Outline (with touch): 50.00(W) × 86.00(H) × 5.60(D) mm
- Module Outline (no touch): 50.00(W) × 86.00(H) × 4.40(D) mm
Battery Charging Parameters
- Working Voltage: 5.0V
- Backlight Current: 75mA
-
Total Current Usage:
- ESP32 reset: 40mA
- Display only: 130mA
- Display + speaker + charging: 480mA
- Power: 0.65W (display only)
- Charging Voltage Range: 4.2–6.5V (typ. 5V)
- Max Charging Current: 500mA
- Actual Charging Current: ~290mA
- Saturation Voltage: 4.24V
- Max Temperature: 62°C
- Battery Type: 3.7V polymer lithium
Why Choose & Common Uses
- All-in-one board — MCU, 2.8" TFT display, resistive touch, and Li-Po charging together, based on the widely-used ESP32-2432S028R ("CYD") design with broad TFT_eSPI/LVGL library support.
- Fits handheld IoT devices, smart-home control panels, DIY test-equipment interfaces, and interactive kiosks — anywhere a project needs a touch UI without extra wiring.
- Need a bare ESP32 board without a screen instead? See the ESP-32S 30-Pin Development Board or the compact ESP32-C3 Super Mini. Browse RAM Electronics' full ESP32 & ESP8266 boards category for more.
Frequently Asked Questions
Can this module run on battery power?
Yes — it has a built-in charging circuit for a 3.7V Li-Po battery, in addition to the standard 5V power input.
Do I need a separate display driver library?
No — it uses the common ILI9341 display driver and XPT2046 touch controller, both well supported by popular libraries such as TFT_eSPI and LVGL.
Conclusion
Building a screen-based ESP32 project? The ESP32-32E 2.8" TFT Touch Display Module is arriving soon at RAM Electronics — contact us to be notified as soon as it's back in stock.
