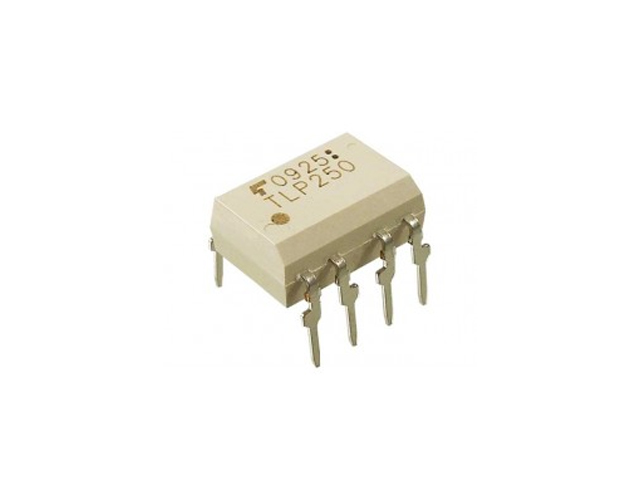

TLP250

The TOSHIBA TLP250 consists of a GaAlAs light-emitting diode and an integrated photodetector.

This unit is an 8−lead DIP package.

TLP250 is suitable for gate driving circuits of IGBT or power MOS FET.

• Input threshold current: IF=5mA(max.)
• Supply current (ICC): 11mA(max.)
• Supply voltage (VCC): 10−35V
• Output current (IO): ±1.5A (max.)
• Switching time (tpLH/tpHL): 1.5µs(max.)
• Isolation voltage: 2500Vrms(min.)
