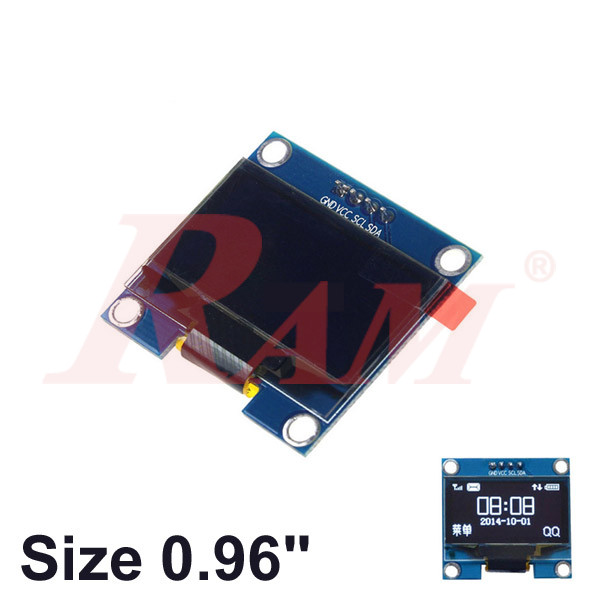

The OLED 0.96" 4pin LCD display module I2C IIC communicate is a 0.96 inch OLED display with the SSD1306 driver chip and 128x64 pixel resolution. It uses an IIC interface with 4 pins and needs only 2 IOs to light up easily.
OLED 0.96" 4pin LCD Display Module I2C IIC Communicate: Product Description
- High resolution: 128x64 (have the same resolution as 12864, high PPI)
- Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor)
- Ultra-low power consumption: it's 0.06w in normal conditions (far less than TFT display)
- Wide voltage supply (3V~5V), 3.3V and 5V level logic compatible, no level shifter IC
- IIC interface and only requires 2 IOs to light up easily
- The range of working temperature is industrial (-20°C~70°C)
- Military-grade process standards, long-term work steadily
- Provide rich multi-platform routines and the technology support of underlying driver
0.96 Inch OLED Display I2C: Product Parameters
Name | Parameter |
Size | 0.96 inch |
Type | OLED |
OLED driver chip | SSD1306 |
Resolution | 128*64 Pixel |
Module interface | IIC, 4PIN |
Effective display area | 21.744 x 10.864 mm |
Module size | 27.3 x 27.8 mm |
Field of View | >160° |
Working temperature | -20℃~60℃ |
Storage temperature | -30℃~70℃ |
Working voltage | 3.3V / 5V |
Power dissipation | TBD |
Product weight | 8g |
SSD1306 OLED 128x64: Interface Definition
PIN | Label | Pin description |
1 | GND | OLED GND |
2 | VCC | OLED VCC input (3.3V~5V) |
3 | SCL | OLED clock signal of IIC bus |
4 | SDA | OLED data signal of IIC bus |
I2C OLED 4 Pin Module: Choosing the Right Display
If you need a bigger OLED screen, see the OLED 1.3" 4pin LCD display module I2C IIC communicate. If you prefer a character display with an I2C interface, see the I2C 1602 LCD display 2x16 or the IIC/I2C 2004 serial character LCD 4x20 display. You can also browse all graphical LCD and OLED displays.
0.96 OLED Display Module: Boards With a Built-in OLED
If you want a board that already includes this screen size, see the NodeMCU with 0.96" OLED based on ESP8266 or the ESP32 OLED 0.96" WiFi TTGO + Bluetooth.
Frequently Asked Questions
What driver IC does the 0.96 inch OLED use?
The OLED driver chip is the SSD1306.
What is the resolution of the 0.96 inch OLED?
The resolution is 128*64 pixels, the same resolution as 12864, with high PPI.
How many pins does the I2C OLED use?
It uses an IIC interface with 4 pins: GND, VCC, SCL and SDA. It only requires 2 IOs to light up easily.
Does the OLED need a level shifter?
No. The wide voltage supply is 3V~5V, and it is compatible with 3.3V and 5V level logic, with no level shifter IC.
What is the viewing angle of the OLED?
The viewing angle is greater than 160°.
How much power does the OLED use?
It has ultra-low power consumption: 0.06w in normal conditions, far less than a TFT display.
The OLED 0.96" 4pin LCD display module I2C IIC communicate gives you a 128x64 SSD1306 display with a wide viewing angle, low power consumption and a simple 4-pin IIC connection. If you are building a small display for your engineering graduation projects this term, RAM Electronics offers the OLED 0.96" 4pin LCD display module I2C IIC communicate in Egypt along with other LCD and OLED displays. Contact us if you need help choosing the right display for your project.
