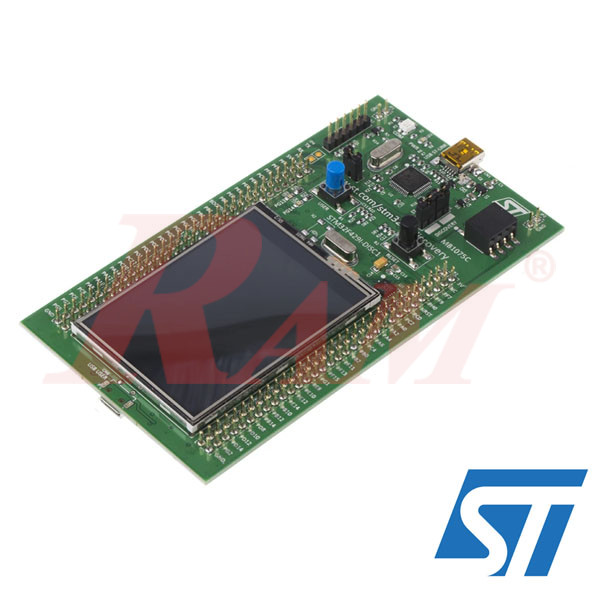

STM32F429I-DISC1 ARM Cortex®-M4 MCU 32-Bit Embedded Evaluation Board

The STM32F429I-DISC1 is a versatile evaluation board featuring the ARM Cortex®-M4 32-bit microcontroller, designed for embedded applications. It offers a rich set of peripherals, including advanced graphics capabilities, high-speed connectivity options, and extensive memory support. Ideal for developers and engineers, this board provides a robust platform for prototyping and testing innovative applications, enabling efficient development and rapid deployment of embedded systems. With its user-friendly design and comprehensive development tools, the STM32F429I-DISC1 is perfect for exploring the capabilities of the STM32F4 series microcontrollers.

General Overview

• Product Name: STM32F429I-DISC1
• Type: Evaluation Board
• Microcontroller: STM32F429ZI
• Architecture: ARM Cortex®-M4
• Bit Width: 32-bit

Key Features

Core:

• ARM Cortex-M4 core with FPU (Floating Point Unit)
• Maximum clock frequency: 180 MHz
• 1 MB Flash memory
• 256 KB SRAM

Connectivity:

• USB OTG FS
• Ethernet MAC
• SDIO interface
• I2C, SPI, USART interfaces
• CAN interface

Display:

• 2.4" TFT LCD with touch screen
• 16-bit color depth

Audio:

• Audio DAC with headphone output
• Microphone input

Expansion:

• Arduino™ Uno V3 compatible connectors
• ST morpho connectors for additional peripherals

Power Supply:

• Powered via USB or external power supply
• Voltage range: 5V

Peripherals

• Timers: 14 timers (including advanced-control timers)
• ADC: 3 ADCs with up to 12-bit resolution - 16 channels
• DAC: 2 DACs with 12-bit resolution
• GPIO: Up to 140 GPIOs

Development Support

• Development Environment: Compatible with various IDEs (e.g., STM32CubeIDE, Keil, IAR) - STM32Cube software development platform
• **Debugging:**
• ST-LINK/V2-1 debugger/programmer integrated

Dimensions

• Board Size: 100 mm x 80 mm

Operating Conditions

• Temperature Range:** -40°C to +85°C (depending on the application)

Additional Features

• On-board ST-LINK/V2-1 for programming and debugging
• User LEDs and push-buttons for easy interaction
• Comprehensive documentation and example projects available

Applications

• Industrial control
• Consumer electronics
• Medical devices
• IoT applications
• Robotics
