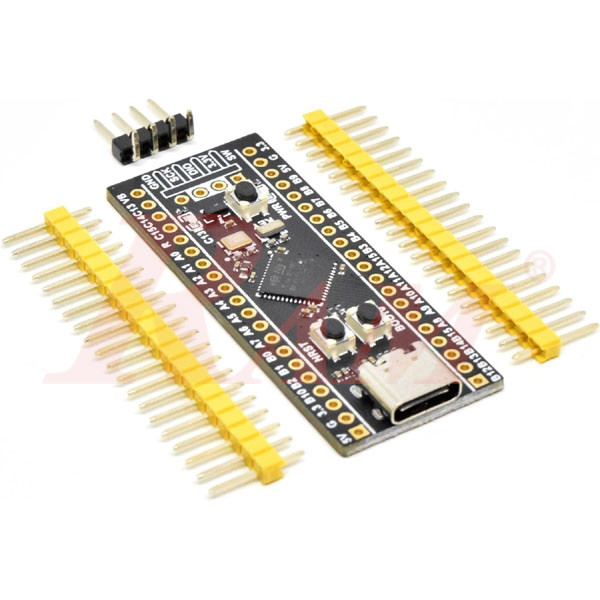

STM32F411CEU6 ARM STM32 Minimum System Development Board

The STM32F411CEU6 Minimum System Development Board, commonly known as the "Black Pill," is a compact and cost-effective platform designed for embedded system development. Powered by the high-performance STM32F411CEU6 microcontroller, it offers a rich set of features suitable for a wide range of applications.

Key Features:

• Microcontroller: STM32F411CEU6 with ARM® Cortex®-M4 core featuring FPU, operating at up to 100 MHz, with 512 KB Flash memory and 128 KB SRAM.
• Operating Voltage: 1.7 V to 3.6 V
• Interfaces:
  • 3 × USART.
  • 3 × I2C.
  • 5 × SPI.
  • 1 × USB 2.0 Full-Speed.
  • 5 × I2S.
  • 1 × SDIO.
• Timers: 8 timers, including two 32-bit timers.
• Analog Features:
  • 1 × 12-bit ADC with up to 16 channels.
• Power Consumption:
  • Run mode: 100 µA/MHz (peripheral off).
  • Stop mode: 42 µA typical at 25°C.
  • Standby mode: 1.8 µA at 25°C without RTC.
• Development Support:
  • Compatible with STM32CubeIDE, Keil MDK, IAR Embedded Workbench, and other ARM development environments.
  • Supports SWD (Serial Wire Debug) and JTAG interfaces for debugging.

Technical Specifications:

• Core Architecture: ARM® Cortex®-M4 with FPU.
• Maximum Clock Frequency: 100 MHz.
• Flash Memory: 512 KB.
• SRAM: 128 KB.
• GPIO Pins: 36 I/O pins.
• ADC Resolution: 12-bit.
• Operating Temperature Range: -40°C to +85°C.
• Package: UFQFPN-48 (7 mm × 7 mm).
• Dimensions: Approximately 54 mm × 22 mm.
• Weight: Approximately 10 grams.

Applications:

• Embedded system prototyping.
• IoT device development.
• Wearable technology.
• Robotics and automation.
• Educational and training purposes.
