DSO138 Soldered Pocket Size Digital Oscilloscope Kit 200KHz

https://ram-electronics.odoo.com/web/image/product.template/7432/image_1920?unique=15e0383

+ Free Acrylic Case

1,100.00 EGP 1100.0 EGP 1,100.00 EGP

1,100.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.DSO138.OSCILLOSCOPE

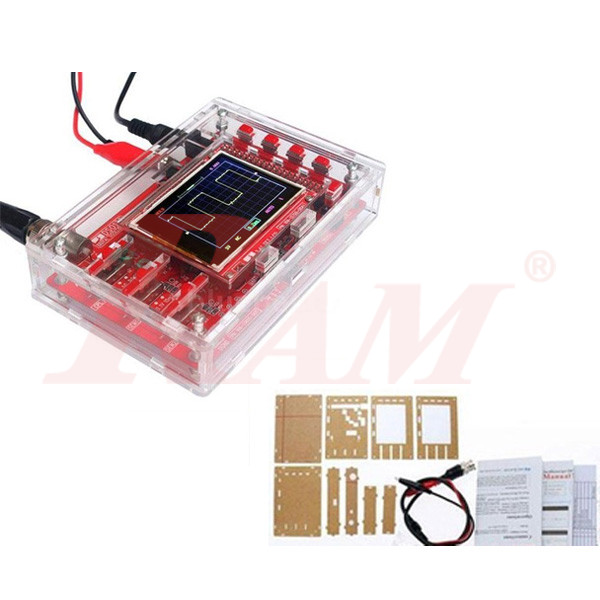

DSO138 2.4" TFT Handheld Pocket-size Digital Oscilloscope Kit 1Msps

This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It's easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Features:

  • This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
  • It can be changed to a Millivoltmeter, or data loggers.
  • Adjustable vertical displacement.
  • With automatic, regular, and one-shot modes, easy to capture the moment waveform.
  • Available rising or falling edge trigger.
  • Observable previous trigger waveform (negative delay).
  • Can freeze at any time waveform display (HOLD function).
  • Comes 1Hz /3.3V square wave test signal source.
  • With waveform parameter digital display, including frequency, period, pulse width, duty ratio,  MAX./MIN./AVG./PeakPeak/virtual values.
  • Waveform storage function: will not lose the waveform after power off.
  • Short-circuit and open-circuit detection: can help the user find out the soldering error.

 Specifications:

  • Maximum Real-time Sampling Rate: 1Msps
  • Accuracy: 12Bit
  • Sampling Buffer Depth: 1024 bytes
  • Analog Bandwidth: 0-200KHz
  • Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
  • Input Impedance: 1MΩ
  • Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
  • Coupling Modes: DC / AC / GND
  • The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
  • Supply Voltage: DC 9V
  • PCB Size: 117 * 76mm / 4.6 * 3in
  • Screen Size: 52 * 40mm / 2 * 1.57in
  • Weight: 119g

Package List:

  • 1 * DSO138 soldered Oscilloscope (soldered)
  • 1 * Probe
  • User Manual(English)
  • Acrylic Case (Enclosure Box) - Free
