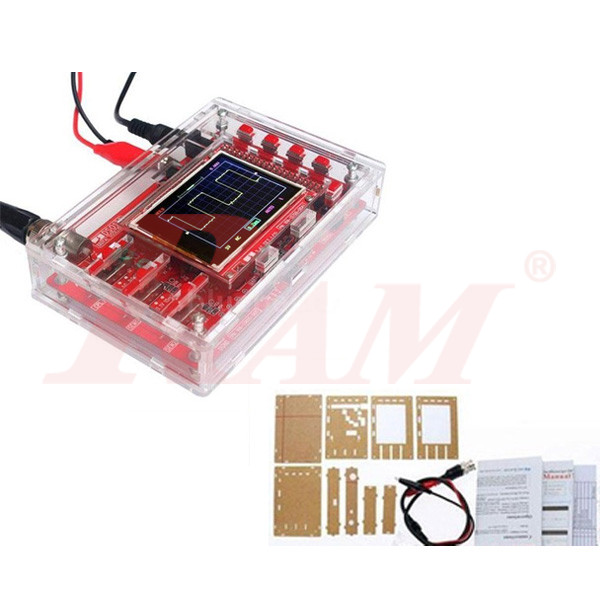

DSO138 Soldered Pocket Size Digital Oscilloscope Kit 200KHz

https://www.ram-e-shop.com/web/image/product.template/7432/image_1920?unique=15e0383

+ Free Acrylic Case

1,100.00 EGP 1100.0 EGP 1,100.00 EGP

1,100.00 EGP

Not Available For Sale

هذه التركيبة غير موجودة.

 متاح للشراء مباشرة من فرع رام للالكترونيات
 متاح خدمة الشحن للمنتج خلال 2-3 ايام عمل


مرجع داخلي: KIT.DSO138.OSCILLOSCOPE

DSO138 2.4" TFT Handheld Pocket-size Digital Oscilloscope Kit 1Msps

This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It's easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Features:

  • This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
  • It can be changed to a Millivoltmeter, or data loggers.
  • Adjustable vertical displacement.
  • With automatic, regular, and one-shot modes, easy to capture the moment waveform.
  • Available rising or falling edge trigger.
  • Observable previous trigger waveform (negative delay).
  • Can freeze at any time waveform display (HOLD function).
  • Comes 1Hz /3.3V square wave test signal source.
  • With waveform parameter digital display, including frequency, period, pulse width, duty ratio,  MAX./MIN./AVG./PeakPeak/virtual values.
  • Waveform storage function: will not lose the waveform after power off.
  • Short-circuit and open-circuit detection: can help the user find out the soldering error.

 Specifications:

  • Maximum Real-time Sampling Rate: 1Msps
  • Accuracy: 12Bit
  • Sampling Buffer Depth: 1024 bytes
  • Analog Bandwidth: 0-200KHz
  • Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
  • Input Impedance: 1MΩ
  • Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
  • Coupling Modes: DC / AC / GND
  • The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
  • Supply Voltage: DC 9V
  • PCB Size: 117 * 76mm / 4.6 * 3in
  • Screen Size: 52 * 40mm / 2 * 1.57in
  • Weight: 119g

Package List:

  • 1 * DSO138 soldered Oscilloscope (soldered)
  • 1 * Probe
  • User Manual(English)
  • Acrylic Case (Enclosure Box) - Free
