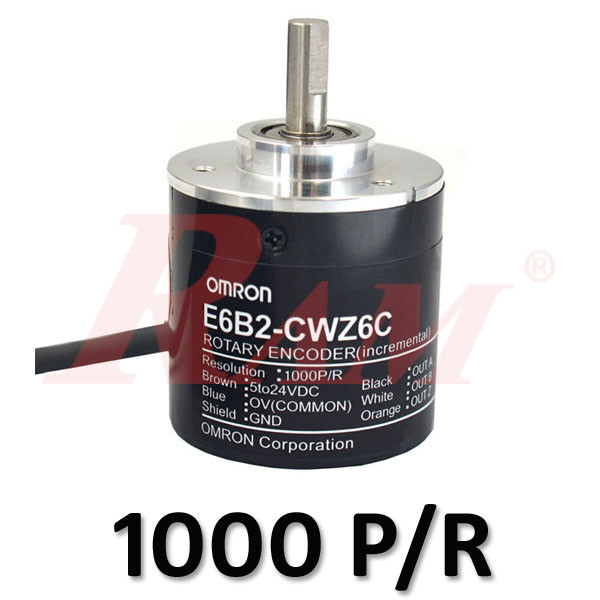

Incremental Rotary Encoder 1000 Pulses E6B2-CWZ6C (1000 P/R)

Product Overview

The E6B2-CWZ6C is a compact, high-precision incremental rotary encoder designed for industrial automation applications. With a 40 mm diameter and a resolution of 1000 pulses per revolution, it provides accurate position and speed feedback. Its NPN open-collector output and robust construction make it ideal for various control systems.

Key Specifications

• Model: E6B2-CWZ6C
• Encoder Type: Incremental
• Resolution: 1000 P/R
• Output Phases: A, B, Z
• Output Type: NPN open-collector
• Power Supply Voltage: 5 to 24 VDC (±15%)
• Max. Response Frequency: 100 kHz
• Shaft Diameter: 6 mm
• Shaft Loading: Radial: 30 N; Thrust: 20 N
• Max. Permissible Rotation: 6000 r/min
• Starting Torque: 0.98 mN·m max.
• Moment of Inertia: 1 × 10⁻⁶ kg·m² max.
• Ambient Temperature: Operating: -10 to 70°C; Storage: -25 to 85°C (no icing)
• Ambient Humidity: Operating/Storage: 35 to 85% RH (no condensation)
• Insulation Resistance: 20 MΩ min. (500 VDC megger)
• Dielectric Strength: 500 VAC, 50/60 Hz for 1 min between charged parts and case
• Vibration Resistance: 10 to 500 Hz, 2 mm or 150 m/s² double amplitude for 11 min, 3 times each in X, Y, Z directions
• Shock Resistance: 1000 m/s², 3 times each in X, Y, Z directions
• Degree of Protection: IEC IP50
• Connection Method: Pre-wired cable (2 m length)
• Materials:
  • Case: ABS
  • Main Unit: Aluminum
  • Shaft: SUS420J2 stainless steel
• Weight: Approx. 100 g (including package)
• Accessories Included: Instruction manual, coupling, hex-head spanner

Applications

Ideal for use in:

• Industrial automation systems
• Robotics
• Conveyor systems
• CNC machinery
• Position and speed control applications

Download

• Datasheet
