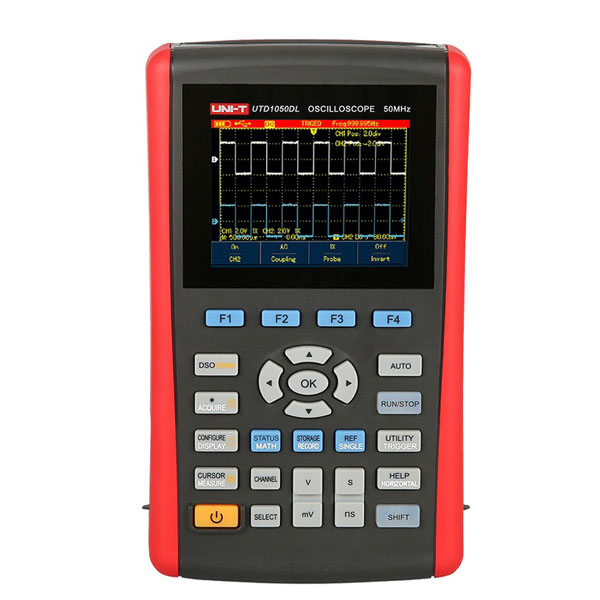

The UTD1050DL is an economical hand-held digital storage oscilloscope, that integrates an oscilloscope, multi-meter, trend chart, and waveform recording function. The compact and portable design brings different visual and operational experiences to users.
This series can be powered by an external power supply or built-in lithium batteries. It is a popular portable measuring instrument tailored for engineers.
- BANDWIDTH: 50 MHz
- ANALOG CHANNELS: 2
- REAL-TIME SAMPLE RATE: 250 MSa/s
- MAX. MEMORY DEPTH: 12 kpts
- MULTIMETER: voltage, current, resistance, etc. Display count:3
- DISPLAY: 3.5 inches TFT LCD
Auto configuration
Powerful automatic setting function, fast and accurate automatic setting for signals containing any DC component
Fully automatic setup function
Automatic setting function (AUTO SCALE) The vertical and time base gears can be automatically adjusted with signal changes without manual intervention;
More parameter measurement types
Peak to Peak, Amplitude, Maximum, Minimum, Top, Bottom, Mid, Average, RMS, Overshoot, Preshoot, Frequency, Period, Rise Time, Fall Time, Positive Pulse Width, Negative pulse width, positive duty cycle, negative duty cycle, rising delay, falling delay, phase, a total of 22 types of measurements.
