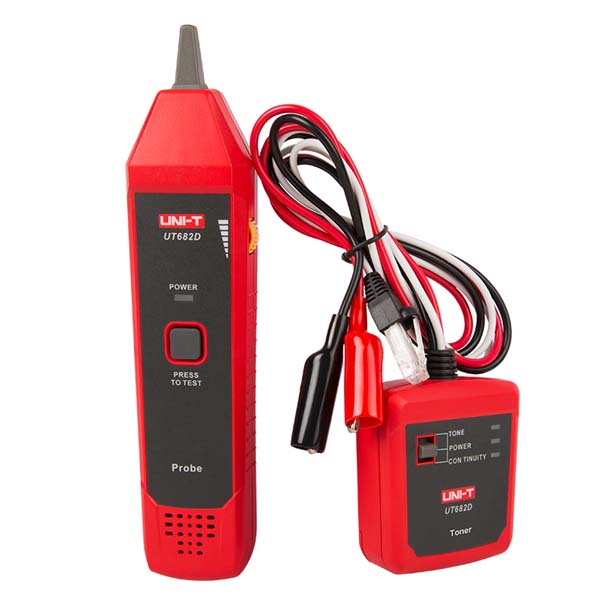

UT682D Wire Tracker/Tone and Probe

https://www.ram-electronics.com/web/image/product.template/8407/image_1920?unique=0c1a160

UNI-T Brand

850.00 EGP 850.0 EGP 850.00 EGP

850.00 EGP

Not Available For Sale

This combination does not exist.

Contact Us

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: AVO.UT682D.UNIT

UT682D wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation. UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.

Features

  • Telephone/ethernet/power cable tracking
  • DC level test, can check voltage level and polarity
  • Ethernet cable wiring sequence verification
  • Fast open/short circuit test
  • Volume adjustment
  • Headset connection for noisy environment
  • Dual measurement cycle mode
  • Low battery indication
Specifications Range   UT682D
Wire tracking features Wire types   Telephone line\twisted-
      pair\electric wire
  Indication light for signal strength
  Live switchboard wire tracing
  Switchboard wire tracing distance
  Telephone lines tracking distance   ≥3000m
  Unshielded cables tracking distance
  Shielded cables tracking distance
  Open and short circuit test
  Polarity indication for DCV function, range: √
  telephone lines ±(5V~52V)
  Telephone lines and LAN cables distinction Jacks distinction √
  Broken wire tracking   NO
  Transmitter output voltage   8V DC with a new battery
  Transmitter power supply 9V battery √
  Receiver power supply 9V battery √
  Max receiver standby current ~10mA √
  Max receiver operating current <40mA (AC, RMS) √
Transmitter  input voltage protection     60V DC
Operating environment Operating temperature: 0~40℃; Storage temperature: -10~50℃
  Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m
General Characteristics
Product Color Red and grey
Product net weight UT682D: Transmitter-150g, Receiver-130g
Product size UT682D: Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm
Standard accessories 9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682)
Standard individual packing gift box (UT682D), English manual
