UT622A Professional LCR Meter
UNI-T Brand
Internal Reference:
AVO.UT622A.UNIT
The UT622A Handheld LCR meters feature powerful functions, high accuracy, fast speed, and long standby time.
With a clear and intuitive 2.8-inch TFT LCD display, large-capacity rechargeable battery, and up to 10kHz test frequency, the meters can be used for longstanding accurate, and convenient measurement on any occasion.
They are suitable for the measurement and screening of inductance, capacitance, and resistance in laboratories, production lines, maintenance points, etc.
- DISPLAY: 2.8'' TFT LCD
- MAX. TEST FREQUENCY: 10kHz
- ACCURACY: 0.1%
- DISPLAY COUNT: 99999
- MAX. TEST RATE: 20 times/s
- CONNECTIVITY: Mini-USB

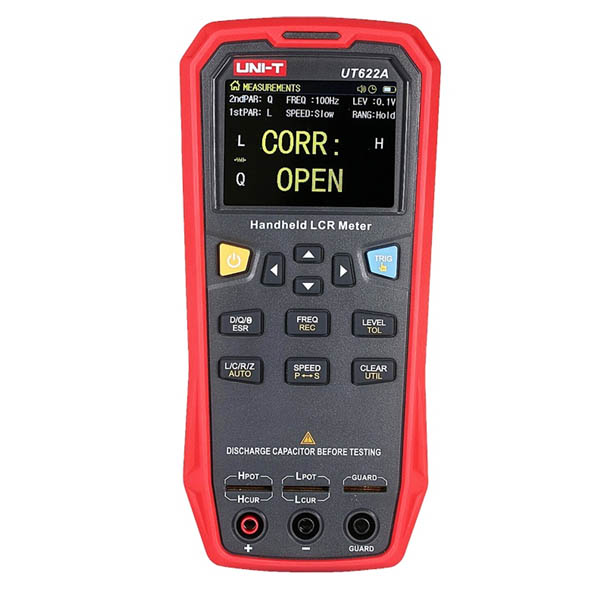

Function panel introduction
- Power switch: long press to turn on, short press to turn off
- Arrow keys: select menu operation keys
- Trigger key: trigger/select trigger mode
- D/Q/θ/ESR: secondary parameter selection
- FREQ/REC: Frequency 100Hz, 120Hz, 1kHz, 10kHz, 100kHz selection and record mode button.
- LEVEL/TOL: 0.1V, 0.3V, 1V, switch and tolerance mode buttons
- L/C/R/Z/AUTO: main parameters and automatic identification.
- SPEED/P-S: Test speed and equivalent mode switch button
- CLEAR/UTIL: CLEAR clear and UTIL practical configuration menu.
Recording mode
The recording mode can be used for data statistics to dynamically obtain the Average, Maximum, Minimum, and Number of records.
Tolerance mode
- The tolerance mode can be used for component sorting.
- The nominal value, tolerance limit, alarm, LED indicator, and counter can be set, and the percentage deviation between the measured value of the main parameter and the nominal value can be calculated for qualified and unqualified Compare, and display GO/NG discrimination results.
- Tolerance range: 1%~20%
- Test speed: 20 times/s(Fast),5 times(Med),2 times/s (Slow)
3-terminal and 5-terminal test ports
- Support three-terminal test, five-terminal end-face test, and Kelvin test line expansion.
- Allow both convenient testing and high-precision testing requirements.
Power supply
UT622 series has two power supply methods:
- lithium polymer battery power supply
- And USB power adapter power supply.
