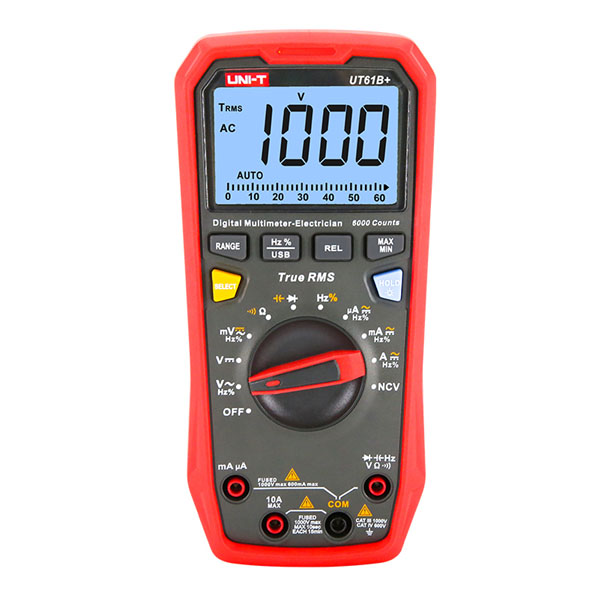

UT61B+ True RMS Digital Multimeter 1000V

https://www.ram-e-shop.com/web/image/product.template/8084/image_1920?unique=eec7523

UNI-T Brand

1,950.00 EGP 1950.0 EGP 1,950.00 EGP 2,500.00 EGP

1,950.00 EGP 2,500.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.UT61B+.UNIT

UT61B+ is a reliable true RMS digital multimeter with display counts 6000. It can measure up to 1000V AC/DC. Equipped with audible and visible alarms, this series can provide warning especially when measuring high voltage/current.

Features

  • 1000V True RMS
  • Data hold/backlight
  • Max/Min/Relative mode
  • USB communication
  • Input protection
  • Diode/continuity test
  • NCV (audible/visual alarm)
Specifications Range UT61B+
AC voltage (V) 1000V ±(1%+3)
DC voltage (V) 1000V ±(0.5%+3)
AC current (A) 10A ±(1.2%+5)
DC current (A) 10A ±(1%+2)
Resistance (Ω) 60MΩ ±(1%+2)
Capacitance (F) 60mF ±(3%+5)
Frequency (Hz) 10MHz ±(0.1%+4)
Duty cycle (%) 0.1%~99.9% ±(2%+5)
Display count   6000
Bandwidth (Hz)   40Hz~500Hz
Analog bar   31
General Characteristics
Power 1.5V battery (R03) x 4
Product net weight 350g
Product size 190mm x 90mm x 50mm
Standard accessories Battery, gold plated test leads, USB cable, temperature probe (UT61D+),
Standard individual packing Gift box, cloth bag
