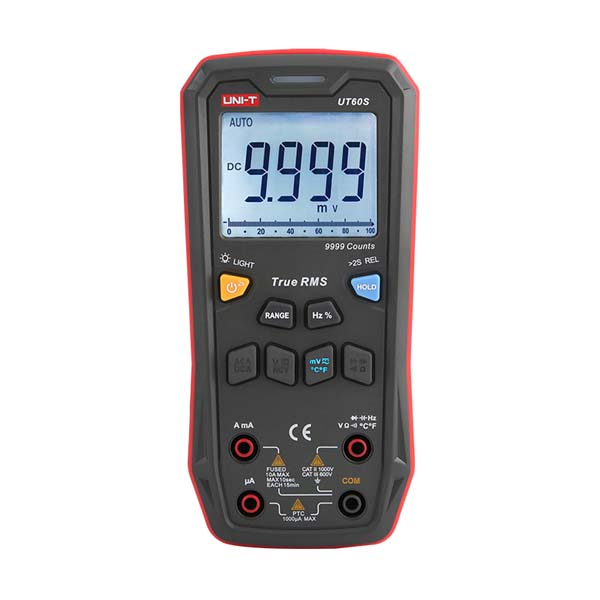

UT60S Auto Digital Multimeter

https://ram-electronics.odoo.com/web/image/product.template/8402/image_1920?unique=449c0b0

UNI-T Brand

1,500.00 EGP 1500.0 EGP 1,500.00 EGP

1,500.00 EGP

Not Available For Sale

This combination does not exist.

Contact Us
1 Year Warranty

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: AVO.UT60S.UNIT

UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection, and many convenient features for user's testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current, and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places. This meter meets CAT II 1000V/CAT III 600V safety ratings with rugged double-injection housing.

Features

  • 9999 counts
  • True RMS
  • Duty cycle
  • Diode/Continuity test
  • Temperature
  • Non-contact voltage
  • Analog bar/Data hold
  • Backlight/Relative mode
  • Auto/Manual range
  • Low battery indication
  • Three-color LED light indicator
Specification Range UT60S
DC Voltage 9.999mV/99.99mV/999.9mV/ ±(0.5%+3)
  9.999V/99.99V/999.9V
AC Voltage 9.999mV/99.99mV/999.9mV/ ±(0.8%+3)
  9.999V/99.99V/999.9V
DC Current 999.9uA/999.9mA/9.999A/10A ±(0.8%+3)
AC Current 999.9uA/999.9mA/9.999A/10A ±(1.0%+3)
Resistance 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ ±(0.8%+2)
Capacitor 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/9.99mF /99.9mF(UT60S) ±(4.0%+5)
Frequency 99.99Hz～9.999MHz ±(0.1%+5)
Duty Cycle 0.1～99.9% ±(3%+5)
Temperature –40℃～1000℃/–40°F～1832°F ±4℃/±5℉
Features
Bluetooth    No
Display Count   9999
Auto Range   √
REL   √
NCV   √
Diode   √
Continuity Test   √
Acousto-optic Indication (NCV/continuity/battery power)   √
Low Battery Indication ≤3.6V √
Data Hold   √
Auto Power Off 15Min √
Operation Temperature 0℃～40℃
Safety CAT II 1000V/CAT III 600V
General Characteristics
Battery 1.5V AAA x 3
Product Color Red and Gray
Product Net Weight 290g
Product Size 169mm x 81mm x 46mm
Standard Individual Packing Gift Box, Manual, Thermocouple
