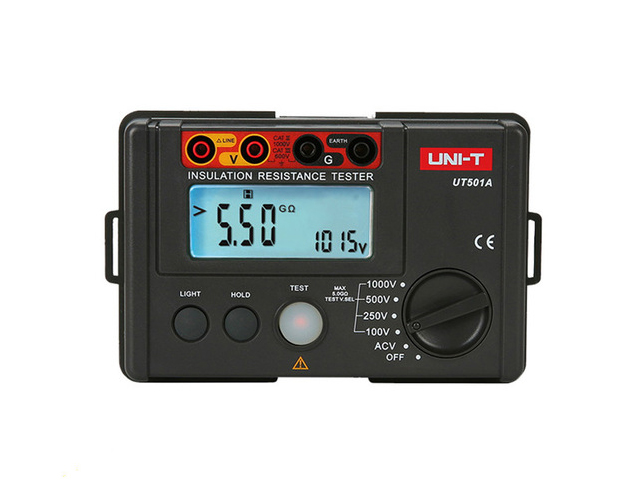

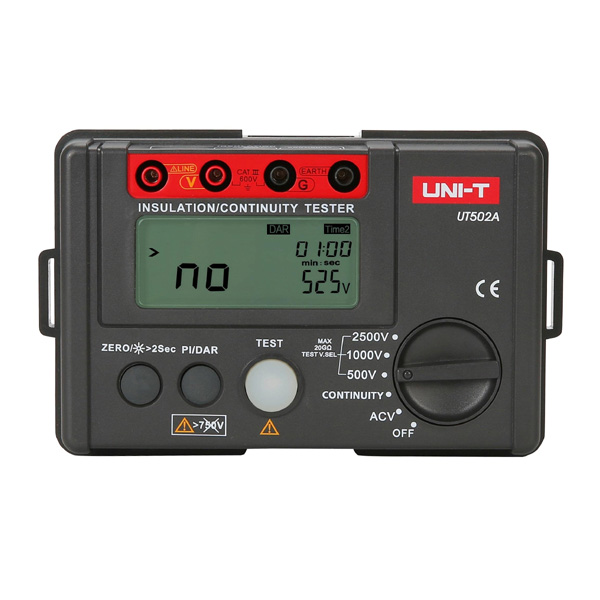

UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground. UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index), and DAR (Dielectric Absorption). These are ideal tools for ensuring transformers, generators, high-voltage motors, capacitors, cables, arresters, and other electrical equipment that can oprate in a safe and accurate manner.
Features
- 2000 count LCD display, overload indication, backlight
- AC voltage measurement, auto power off
- Auto discharge
- Continuous low resistance measurement
- Continuous measurements mode, red warning light and buzzer function
- PI and DAR measurement, auto resistivity calculation
- Low resistance returning to zero function to improve accuracy
| Specifications | Range | UT501A | UT501B | UT502A | |
| Insulation resistance (Ω) | Test voltages | 100V/250V/500V/1000V | 0%~10% | ||
| 250V/500V/1000V | 0%~10% | ||||
| 500V/1000V/2500V | 0%~10% | ||||
| 100V | 0MΩ~100MΩ | ±(3%+5) | |||
| 250V | 0MΩ~99.9MΩ | ±(3%+5) | ±(3%+5) | ||
| 100MΩ~5GΩ | ±(5%+5) | ±(5%+5) | |||
| 500V | 0MΩ~99.9MΩ | ±(3%+5) | ±(3%+5) | ±(3%+5) | |
| 100MΩ~5GΩ | ±(5%+5) | ±(5%+5) | ±(5%+5) | ||
| 1000V | 0MΩ~99.9MΩ | ±(3%+5) | ±(3%+5) | ±(3%+5) | |
| 100MΩ~5GΩ | ±(5%+5) | ±(5%+5) | ±(5%+5) | ||
| 2500V | 0MΩ~99.9MΩ | ±(3%+5) | |||
| 100MΩ~9.9GΩ | ±(5%+5) | ||||
| 10GΩ~20GΩ | ±(10%+5) | ||||
| Load current | 50V (R=50kΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | |
| 100V (R=100kΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | ||
| 250V (R=250kΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | ||
| 500V (R=500kΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | ||
| 1000V (R=1MΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | ||
| 2500V (R=1MΩ) 1mA | 0%~10% | ||||
| Short-circuit current | <2mA | <2mA | <2mA | ||
| Low resistance (Ω) | 0.01Ω~200Ω (about 5.0V/>200mA） | ±(2%+3) | ±(2%+3) | ||
| AC voltage (V) | 30V~750V | ±(2%+3) | |||
| 30V~600V | ±(2%+3) | ±(2%+3) | |||
| Features | |||||
| Display count | 2000 | 2000 | 2000 | ||
| DAR | 60s/15s and 60s/30s | √ | √ | ||
| PI | √ | √ | |||
| Auto range/Low battery indication | √ | √ | √ | ||
| LCD backlight/Light alarm | √ | √ | √ | ||
| Buzzer alarm/High voltage indication | √ | √ | √ | ||
| Over load indication/Auto discharge | √ | √ | √ | ||
| Test voltage secondary display | √ | √ | √ | ||
| 10MΩ internal resistance test | √ | √ | √ | ||
| Meets IEC 61557 | 61557-1:2007; 61557-2:2007; 61557-4:2007 (UT502A only) | ||||
| General Characteristics | |||||
| Power | 1.5V battery (LR6) x 6 | √ | √ | √ | |
| Display | 70.6mm x 34mm | √ | √ | √ | |
| Product Color | Red and grey | √ | √ | √ | |
| Product net weight | 500g | √ | √ | √ | |
| Product size | 150mm x 100mm x 71mm | √ | √ | √ | |
| Standard accessories | Batteries, test leads, alligator clips, gallus | Batteries, test leads, alligator clips, gallus | Batteries, test leads, alligator clips, gallus, test probes | ||
| Standard individual packing | Gift box, carrying bag, English manual | Gift box, carrying bag, English manual | Gift box, carrying bag, English manual |
