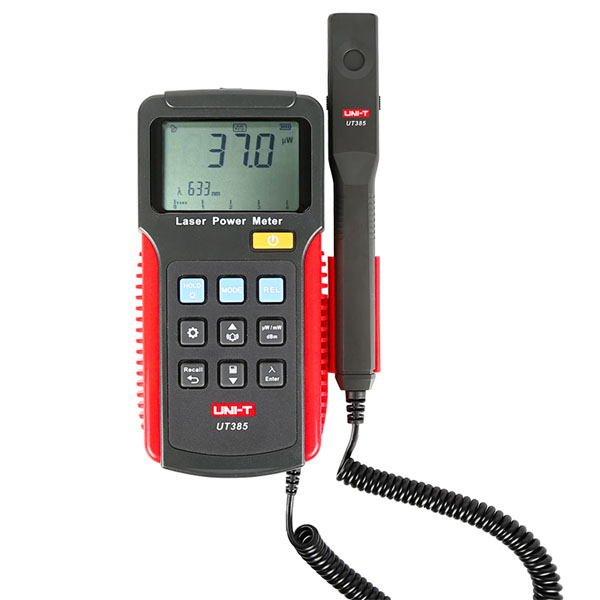

UT385 Laser Power Meter

https://www.ram-e-shop.com/web/image/product.template/8096/image_1920?unique=0c1a160

UNI-T Brand

6,500.00 EGP 6500.0 EGP 6,500.00 EGP

6,500.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.UT385.UNIT

UT385 laser power meter is used to measure the energy output of laser beams for testing or laser system applications. It uses a detection sensor to determine the intensity of a laser beam’s energy output.

Features

  • Precise laser sensor
  • Split design with retractable spring wire
  • LCD screen for clear readings
  • Data storage function
  • Selectable and customizable wavelengths
  • Threshold alarm function
  • Low power consumption
Specifications Range
Certificates CE, RoHS
Measurement range 0uW~39.99mW
Measurement accuracy 0uW~10uW: ±(5%+0.3); 10uW~39.9mW: ±5%
Laser wavelength range 400nm~1100nm
Laser wavelength preset options 520nm, 633nm, 650nm, 780nm
LCD display 4-digit LCD display
Sampling rate 0.5s
Data storage 199 sets
Battery level indication
LCD backlight
Auto power off
Operating temperature 0~40°C
Operating humidity 80%RH (no condensation)
Storage temperature  -10°C~50°C
General Characteristics
Power 9V battery (6F22)
Display 57mm x 37mm
Product net weight 319g
Product size 198mm x 104mm x 35mm
Standard accessories Battery, USB cable, documents download guide, English manual
Standard individual packing Gift box, tool box
