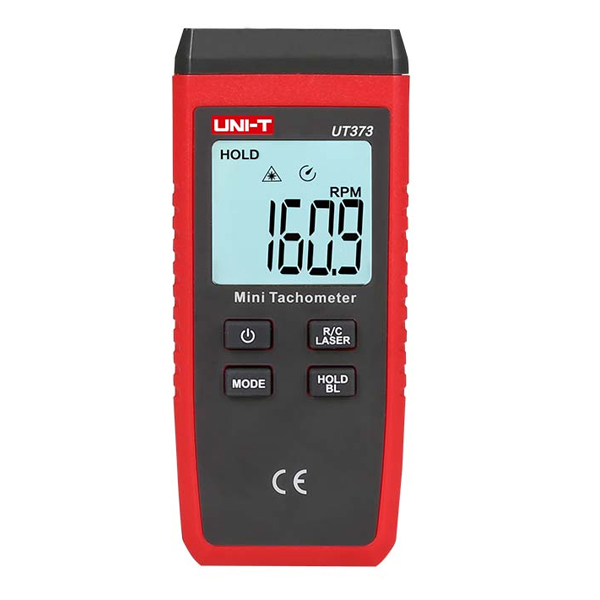

UT373 Mini Tachometer

https://www.ram-e-shop.com/web/image/product.template/7700/image_1920?unique=a87cc7a

UNI-T Brand

785.00 EGP 785.0 EGP 785.00 EGP 950.00 EGP

785.00 EGP 950.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.UT373.UNIT

UT373 is a reliable digital non-contact tachometer used to measure rotation speed of motors and other machines. This device is able to display results in RPM or revolution count. UT373 is able to safely measure rotational objects through a non-intrusive method.

Features

  • Auto range
  • Up to 99999 display; overload display, “OL”
  • RPM measurement and revolution count
  • Max/Min, data hold
  • Singal trigger/laser-on indication
  • Low battery/auto power off indication
  • LCD backlight
Specifications Range Resolution Accuracy
RPM measurement 10.0~9999.9RPM 0.1 ±(0.04%+2)
  10000~99999RPM 1
Counting measurement 0~99999 counts 1 ±1
Features
Auto range
Auto power off
Low battery indication
Laser-on indication
Data hold
MAX/MIN
Rotating speed/count function switching
Overload indication
LCD backlight
Refresh rate 1s to 7s (>120rpm for 1s)
Sensor type Photodiode and laser tube
Target distance 50mm~200mm
Measuring angle ±30° from perpendicular
Drop test 1m
General Characteristics
Power 1.5V battery (R03) x 3
Display 5-digit segment code; 99999 max display
Product Color Red and grey
Product net weight 85g (excluding battery)
Product size 183.8mm x 56mm x 34mm
Standard accessories Batteries, reflective tape
Standard individual packing Bubble bag, gift box, English manual

Download
