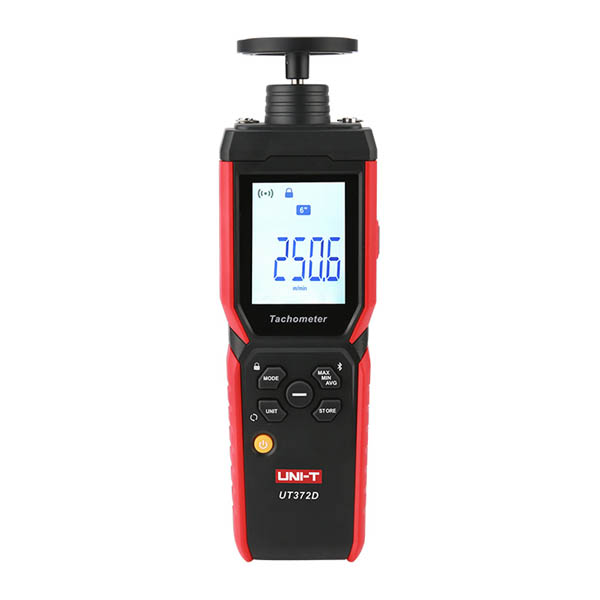

UT372D 2-in-1 Tachometer

https://ram-electronics.odoo.com/web/image/product.template/8661/image_1920?unique=e8f77f7

UNI-T Brand

4,500.00 EGP 4500.0 EGP 4,500.00 EGP

4,500.00 EGP

Not Available For Sale

This combination does not exist.

Contact Us
1 Year Warranty

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: AVO.UT372D.UNIT

UT372D 2-in-1 Tachometer is a reliable and safe tachometer, which combines contact and non-contact measurement modes. It is mainly used to measure :

  • Revolutions Per Minute (RPM)
  • Frequency
  • Surface velocity
  • length in the fields of motors, fans, automobiles, papermaking, etc.

Features

  • Contact and non-contact measurements
  • MAX/MIN/AVG/HOLD
  • Rotatable LCD backlight screen
  • Unit conversion
  • Bluetooth APP
  • Auto power off
  • Data storage
  • Two measurement buttons
Specification   Range
Non-contact (optical) measurement Rotational velocity (RPM) 1-99,999
  Frequency (HZ) 1-1,666
  Count(REV) 1-99,999
  Target distance 50~500mm
Contact measurement Rotational velocity (RPM) 1-19,999
  Frequency (HZ) 1-333
  Surface velocity 0.1m wheel
    0.1-1,999m/min
    0.4-6,550ft/min
    4-78,700in/min
    6” wheel
    0.15-1,524m/min
    0.5-5,000ft/min
    6-60,000in/min
  Length 0-99999(m/ft/in)
Accuracy ±0.02% ±1 digit
Measurement modes Contact RPM/Non-contact RPM/counting/frequency/Surface velocity/length
Contact measurement unit m/min, ft/min, in/min,m,ft,in
Statistical measurement Max/Min/Last reading/Average
Data storage 10 groups
Operating temperature/humidity 0°C~50°C; ≤80%RH
Storage temperature -20°C~60°C; ≤80%RH
Drop test 1m
Auto power off After about 15 minutes of inactivity
General Characteristics
Product Color Red and grey
Product weight About 181g (without batteries)
Product size 176 × 63 x 38mm
Battery type AAA 1.5V ×3
Standard accessories user manual
  quick start guide
  safety instruction
  shaft contacts(cone/internal cone)
  contact wheels(6in/0.1m)
  cloth bag
  reflecting tape
