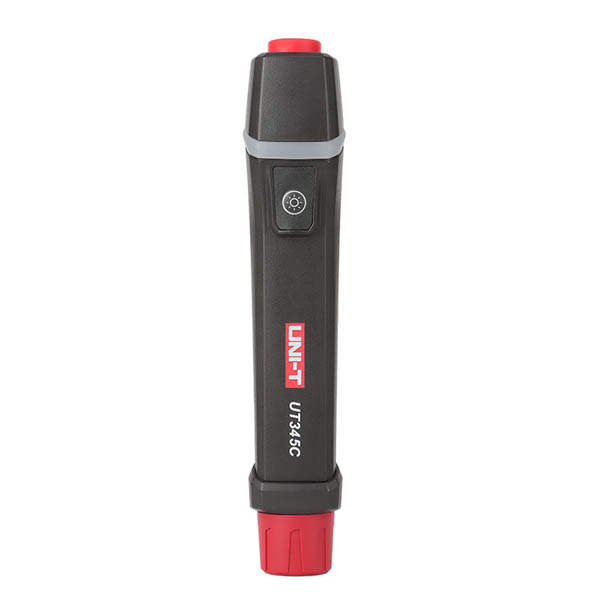

UT345C LPG Gas Tank Level Checker

https://ram-electronics.odoo.com/web/image/product.template/8667/image_1920?unique=9ee6525

UNI-T Brand

950.00 EGP 950.0 EGP 950.00 EGP

950.00 EGP

Not Available For Sale

This combination does not exist.

1 Year Warranty

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.UT345C.UNIT

UT345C is a portable ultrasonic measuring device. It can quickly determine the filling level of liquefied gas bottles by LED indication. It can be used in food processing places, camps or barbecues, gas bottle sales, catering services and other places where gas bottles are used.

Features

  • Pen-like design
  • Compact and portable
  • Simple determination without additional accessories required
  • Red and green LED indication
  • Easy to measure without moving the gas bottles
  • Flashlight design
Features
Applicable gas tanks/bottles Steel and aluminum standard propane or butane LPG (liquefied petroleum gas) storage tanks with 8-14 inches (approx. 200-350mm) in diameter
LED color Green: There is liquefied gas at this level
  Red: No liquefied gas at this level
  Green/red flashing: Measuring
Measurement method Press the probe 90 degrees vertically at different positions of the bottle to measure and then check the LED color
Sound
Operating temperature/humidity -15~40°C ≤85%RH
Storage temperature -10~60°C ≤75%RH
Drop test 0.5m
General Characteristics
Product Color Red and grey
Product weight TBD
Product size 28×32×143mm
Battery type AAA (LR03) 1.5V×2
Standard accessories User manual, safety instruction
