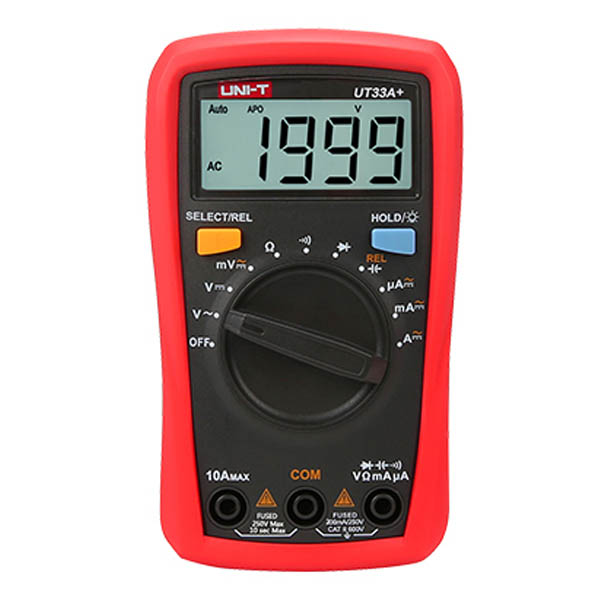

UT33A+ Palm Size Digital Multimeter - Auto Range
UNI-T Brand
Internal Reference:
AVO.UT33A+.UNIT
The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 2-meter drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment.
Features
-
2mF capacitance test (UT33A+)
- Clear LCD display
- Comfortable protective cover, with test lead hanging groove
- 2 meters drop test, precision protection
- Loud buzzer sound; Ergonomic design
Specifications | Range | UT33A+ |
DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%+2) |
AC voltage (V) | 600V | ±(0.7%+3) |
AC voltage (V) | 200V/600V | |
DC current (A) | 10A | ±(1%+2) |
AC current (A) | 10A | ±(1.2%+3) |
Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ | ±(0.8%+2) |
Capacitance (F) | 2mF | ±(4%+8) |
Features | ||
Display count | 2000 | |
Auto power off/Auto backlight off | √ | |
Diode test/Continuity buzzer | √ | |
2m drop test/ Test probe holder | √ | |
Range selection | Auto | |
General Characteristics | ||
Power | 1.5V battery (R03) x 2 | |
Display | 66mm x 51mm | |
Product net weight | Red and grey | |
Product Color | 206g (batteries included) | |
Product size | 134mm x 77mm x 47mm | |
Standard accessories | Batteries, test leads | |
Standard individual packing | Gift box, English manual |
