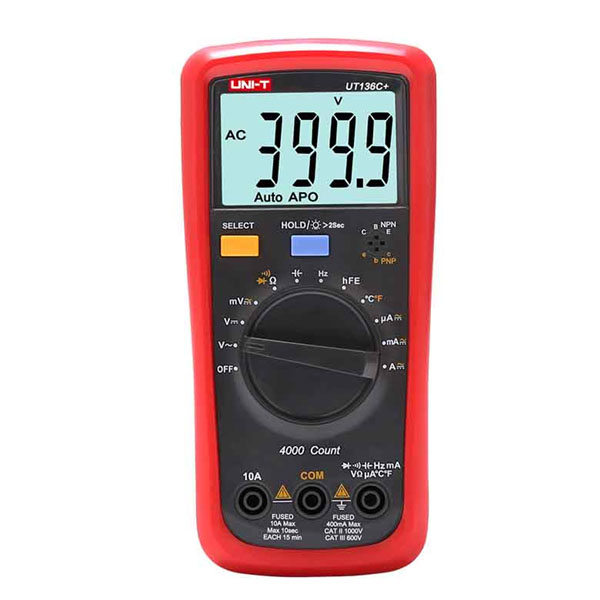

UT136C+ Digital Multimeter (Auto-Range)

https://www.ram-e-shop.com/web/image/product.template/8083/image_1920?unique=57f386d

UNI-T Brand

725.00 EGP 725.0 EGP 725.00 EGP

725.00 EGP

Not Available For Sale

This combination does not exist.

1 Year Warranty

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.UT136C+.UNIT

The new generation of UT136+ series digital multimeter has an innovative industrial design which ensures that the product can withstand a drop of 2 meters height. Large LCD screen provides a clear display and its 4 times/second sampling rate provides users with more accurate readings. UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environment.

Features

  • Measures up to 1000V and 10A AC/DC voltage and current
  • Equipped with 3mm protective sleeve; 2 meters drop proof
  • Large LCD display; Overload alarm
  • Quick sampling rate, up to 4 times/s
  • Quick capacitor measurement (measures 1mF in 4 seconds)
  • Low power consumption and auto power saving function; long battery service life (>500hrs)
Specifications Range UT136C+
DC voltage (V) 1000V ±(0.7%+3)
AC voltage (V) 1000V ±(1%+3)
DC current (A) 10A ±(1%+3)
AC current (A) 10A ±(1.2%+5)
Resistance (Ω) 40MΩ ±(0.8%+2)
Capacitance (F) 40mF ±(3%+5)
Frequency (Hz) 400Hz~40mHz ±(0.1%+4)
Temperature (°C) -40~1000℃ ±(1%+4)
Temperature (℉) -40~1832℉ ±(1.5%+5)
Features
Display count   4000
hFE Transistor measurement
Diode/transistor
Continuity buzzer
Data hold/Auto power off
Low battery/Indication
LCD backlight
Safety rating CAT Ⅱ 1000V, CAT Ⅲ 600V
Drop test 2m
General Characteristics
Power 1.5V battery (R6) x 2
Display 56.5mm x 36mm
Product Color Red and grey
Product net weight 330g
Product size 175mm x 83mm x 53mm
Standard accessories Batteries, test leads, temperature probe (UT136C+)
Standard individual packing Gift Box, English manual
