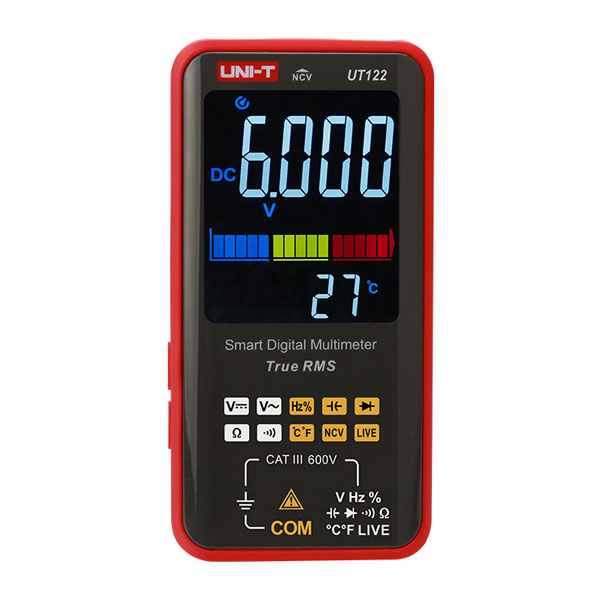

UT122 series feature large-screen & ultra-thin multimeters and auto range and they can display two measurement results at the same time, which is convenient for home and non-professional users. They are convenient and fast electronic tools.
Features
- True RMS
- AC/DC 600V voltage measurement
- 60MΩ large resistance measurement
- 99mF large capacitance measurement
- Built-in rechargeable lithium battery, Type-C charging
-
Temperature measurement (UT122)
- Full-scale input protection
- NCV/LIVE measurement
- Large-size LCD screen
- 19mm ultra-thin body
- 6000counts
- Intelligent identification gear
| Specifications | Range | UT122 |
| AC voltage (V) | 6.000V/ 60.00V/ 600.0V | ± (1.0%+3) |
| AC voltage frequency (Hz) | 10Hz - 1kHz | ± (0.5%+2) |
| DC voltage (V) | 6.000V/ 60.00V/ 600.0V | ±(0.5%+3) |
| Resistance (Ω) | 600.0Ω/ 6.000KΩ/ 60.00KΩ/ 600.0KΩ/ 6.000MΩ/ 60.00MΩ | ± (2.0%+5) |
| Capacitance (F) | 99.99nF/ 999.9nF ～ 9.999μF/ 9.999mF ～ 99.99mF | 10% |
| Frequency (Hz) | 10.00Hz - 10.00MHz | ± (0.1%+3) |
| Temperature(℃/℉) | –40℃ ～ 1000℃ | ±3℃ |
| Features | ||
| Display count | 6199 | |
| Dual display | √ | |
| Auto range | √ | |
| NCV detection | √ | |
| LIVE detection | √ | |
| Diode test | √ | |
| Continuity buzzer | √ | |
| LCD high voltage alert | √ | |
| Flashlight | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| Data hold | √ | |
| Category ratings | CATⅢ 600V |
