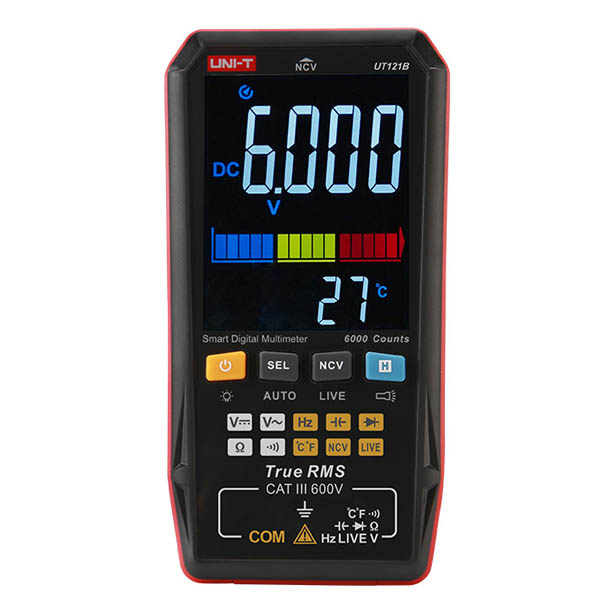

UT121B Smart Digital Multimeter

https://www.ram-e-shop.com/web/image/product.template/8658/image_1920?unique=c182c04

UNI-T Brand
Similar to UT122

850.00 EGP 850.0 EGP 850.00 EGP

850.00 EGP

Not Available For Sale

This combination does not exist.

1 Year Warranty

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.UT121B.UNIT

UT121 series feature large-screen & ultra-thin multimeters and auto range and they can display two measurement results at the same time, which is convenient for home and non-professional users. They are convenient and fast electronic tools.

Features

  • True RMS
  • AC 750V/DC 1000V voltage measurement
  • 60MΩ large resistance measurement
  • 60mF large capacitance measurement
  • Full-scale input protection
  • NCV/LIVE measurement
  • Large-size LCD screen
  • 19mm ultra-thin body
  • 6000counts
  • Intelligent identification gear
Specifications Range UT121B
AC voltage (V) 6.000V/60.00V/600.0V/750.0V ±(1.5%+3)
AC voltage frequency (Hz) 10Hz-1kHz ±(0.5%+2)
DC voltage (V) 6.000V/60.00V/600.0V/1000.0V ±(1.2%+3)
Resistance (Ω) 600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/60.00MΩ ±(2%+5)
Capacitance (F) 60.00nF/600.0nF~600.0μF/6000uF~60.0mF ±(10%+5)
Frequency (Hz) 10.00Hz-10.00MHz ±(0.1%+3)
Temperature(℃/℉) –40℃~1000℃/–40°F~1832°F ±3℃/±6℉
Features
Display count   6099
Dual display
Auto range
NCV detection
LIVE detection
Diode test
Continuity buzzer
 LCD high voltage alert
Flashlight
Low battery indication
Auto power off
Data hold
Category ratings   CATⅢ 600V
General Characteristics
Standard accessories   UT121B Batteries, test leads, temperature probe, English manual
Power   2*1.5V AAA
Display   UT121A/UT122B: 52*66mm; UT122: 65*55mm
Product size   UT121A/UT122B: 143*74*17mm; UT122: 144*71*15.5mm

Download
