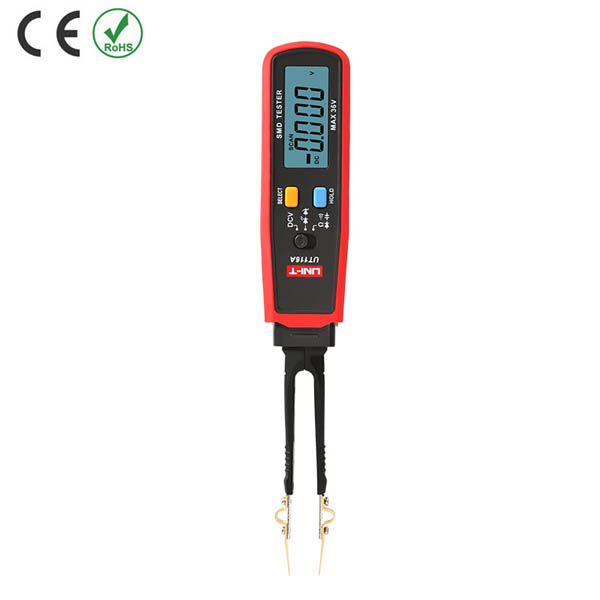

UT116 series SMD tester is a miniaturized and integrated utility model measuring instrument, which can automatically identify components such as resistance, capacitance, diode, etc., with LED, voltage regulator, DCV, on-off and battery power measurement functions. SMD resistance, capacitance, diode (RCD) parameter measurement, is a good helper for electronics factories and electronics maintenance.
Features:
- 36V DC voltage measurement
- Resistance, capacitance, continuity, diode measurement
- The pen can be rotated by 180°, which is convenient for reading and diode/LED
- Zener diode polarity test
| Specifications | UT116A |
| Display count | 3000 |
| Resistance | 30MΩ |
| Capacitance | 30mF |
| Diode test | 3V |
| LED/stabilivolt | About 21V/1mA |
| Continuity test | ＜30Ω |
| DCV | 36V |
| Battery test | _ |
| Auto range | √ |
| Auto scan identification | √ |
| Auto power off | √ |
| General Characteristics | |
| Power | 1.5V battery (R03) x 2 |
| Display | 39mm x 20mm |
| Product Color | Red and grey |
| Product net weight | About 80g |
| Product size | 204mm x 33mm x 25mm |
| Standard accessories | Battery |
| Standard individual packing | Gift box, English manual |
