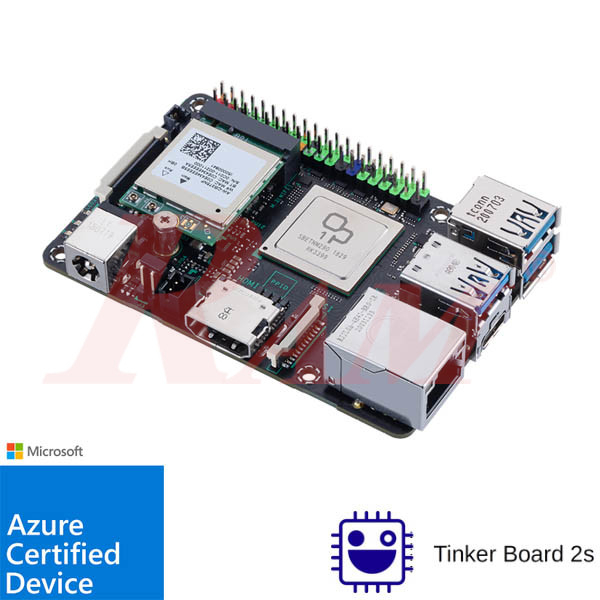

ASUS Tinker Board 2S Development Board 4G+16G

https://www.ram-e-shop.com/web/image/product.template/9255/image_1920?unique=129de98

8,850.00 EGP 8850.0 EGP 8,850.00 EGP

8,850.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: ASUS.THINKER.2S

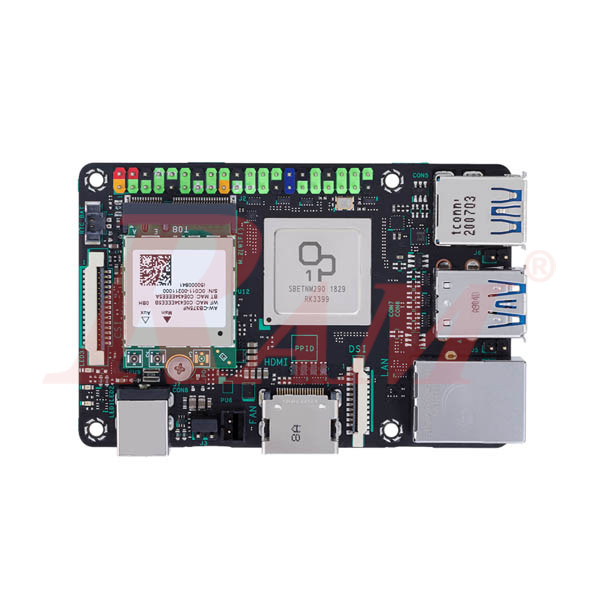

Tinker Board 2S


An Arm-based Single Board Computer (SBC), uses Arm big.LITTLE™ technology's 64-bits processor, offers enhanced computing performance with low power consumption.


🧠 Core Specifications
  • SoC: Rockchip RK3399
  • CPU:
    • Dual-core Arm® Cortex®-A72 @ 2.0 GHz
    • Quad-core Arm® Cortex®-A53 @ 1.5 GHz
  • GPU: Arm® Mali™-T860 MP4 @ 800 MHz
💾 Memory & Storage
  • RAM: Dual-channel LPDDR4, 4GB
  • Storage Options:
    • 16GB eMMC
    • MicroSD (TF) card slot (push/pull)
🖥️ Display Interfaces
  • 1 x HDMI™ (CEC hardware ready)
  • 1 x USB Type-C® with DisplayPort Alt Mode
  • 1 x 22-pin MIPI DSI (4-lane)
📡 Connectivity
  • Ethernet: 1 x RTL8211E/F Gigabit LAN
  • Wireless:
    • M.2 slot with 802.11 a/b/g/n/ac Wi-Fi
    • Bluetooth 5.0 (2T2R)
🔊 Audio Interfaces
  • 1 x HDMI™ audio output
  • 1 x S/PDIF TX pin (via GPIO)
  • 1 x PCM/I2S pins (via GPIO)
🔌 USB Ports
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C® OTG
📷 Camera Interface
  • 1 x 15-pin MIPI CSI-2 (2-lane)
📟 Internal Headers
  • 40-pin Header includes:
    • Up to 28 x GPIO
    • Up to 2 x SPI
    • Up to 2 x I²C
    • Up to 2 x UART
    • Up to 3 x PWM
    • 1 x PCM/I2S
    • 1 x S/PDIF TX
    • 2 x 5V, 2 x 3.3V power pins
    • 8 x Ground pins
  • Additional Headers:
    • 2-pin Recovery
    • 2-pin Power-on
    • 2-pin Reset
    • 2-pin Debug UART
    • 2-pin DC Fan
    • 2-pin RTC Battery
🔋 Power
  • Input: 12V ~ 19V DC via 5.5mm / 2.5mm barrel jack
  • Power Consumption: Up to 45W
💽 Operating System Support
  • Debian 11
  • Android 12
  • Yocto 4.0
📏 Physical & Environmental
  • Dimensions: 85 x 56 mm (3.37" x 2.125")
  • Operating Temperature: 0°C to 60°C
  • Storage Temperature: -40°C to 85°C
  • Humidity: 0% – 85% (non-condensing)
