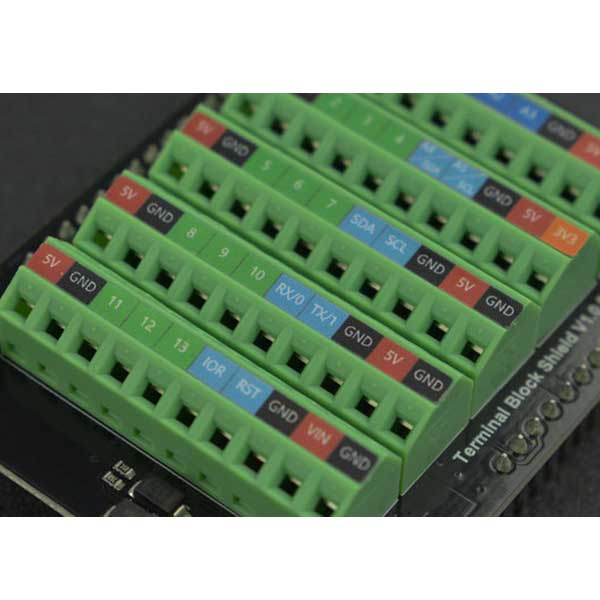

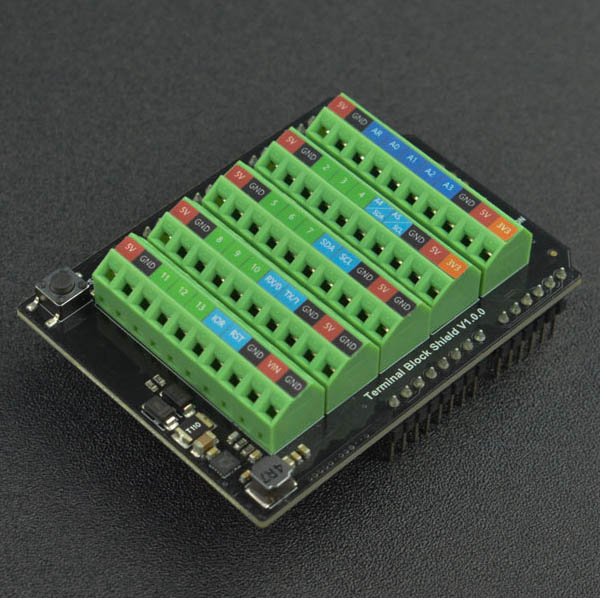

Terminal Block Shield for Arduino UNO

https://ram-electronics.odoo.com/web/image/product.template/8491/image_1920?unique=e8f77f7

1,550.00 EGP 1550.0 EGP 1,550.00 EGP

1,550.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: ARDUINO.SH.UNO.TERMINAL

INTRODUCTION

Has it ever happened to you that you spent a lot of time ascertaining a problem when making projects and finally found out it was just caused by loose wiring? Then, what you may need is a terminal block shield like this! The shield adopts terminal blocks to secure wires so as to make connections stable and reliable. And multiple 3.3V, 5V, and GND ports are provided for easy wiring. It can be powered by 7~24V voltage without an additional buck-down circuit. With a reasonable layout and taller pin headers, this terminal block shield works well with Arduino UNO Ethernet Shield.

FEATURES

  • Stable and reliable connection
  • Easy wiring

APPLICATIONS

  • Commercial Project
  • Art Show

SPECIFICATION

  • VIN Input Voltage: 7-24V DC
  • Max Load Power: 10W
  • Terminal Block Pitch: 3.5mm
  • Wire Size Range: 26AWG-16AWG
  • Wire Strip Length: 5mm
  • Screw: M2
  • Dimension: 68.6*53.3mm/2.70*2.10”
