USB Connector on PCB C-Type Type Female 16 Pin (SKU#USB9)

5.00 EGP 5.0 EGP 5.00 EGP

5.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: USB9.C.TYPE.PCB

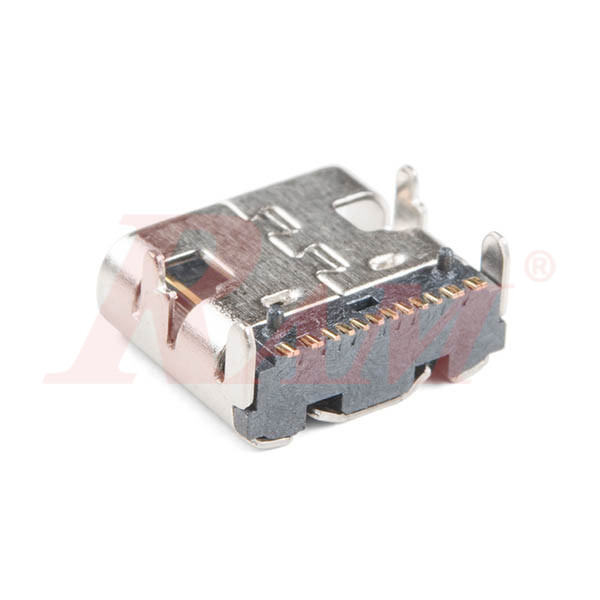

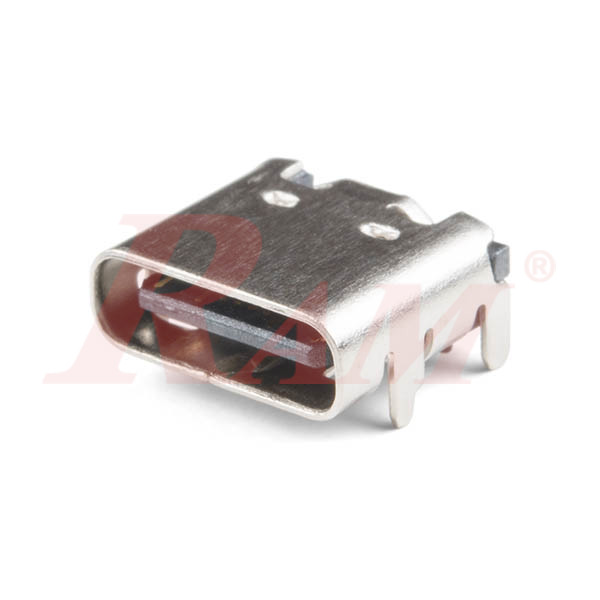

This is a 16-pin, female, USB Type C connector that is commonly found in smartphones, laptops, and other newer electronics. Each USB-C connector will require PTH soldering to secure it to your board and SMD soldering to connect each of the 16 control pins.


  • Compliant with Universal Serial Bus Type-C Specification Release 2.0
  • Compatible with USB Power Delivery 3.0 / Supports 5 A max. power supply

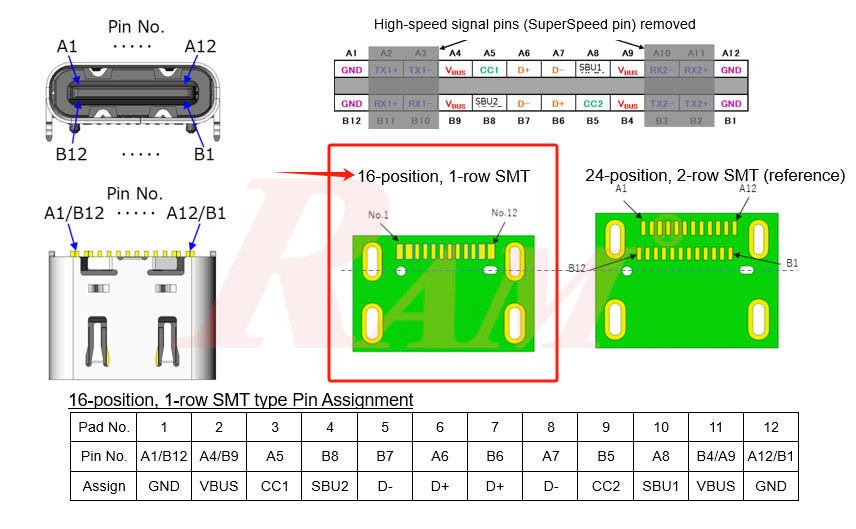

  • 16-position (after removing the SuperSpeed pins), supporting USB2. 0 (480Mbps) transmission
  • Standard SMT on-board type, which is in high demand for a wide range of applications
  • Single-row SMT terminals for easy inspection and repair of solder joints

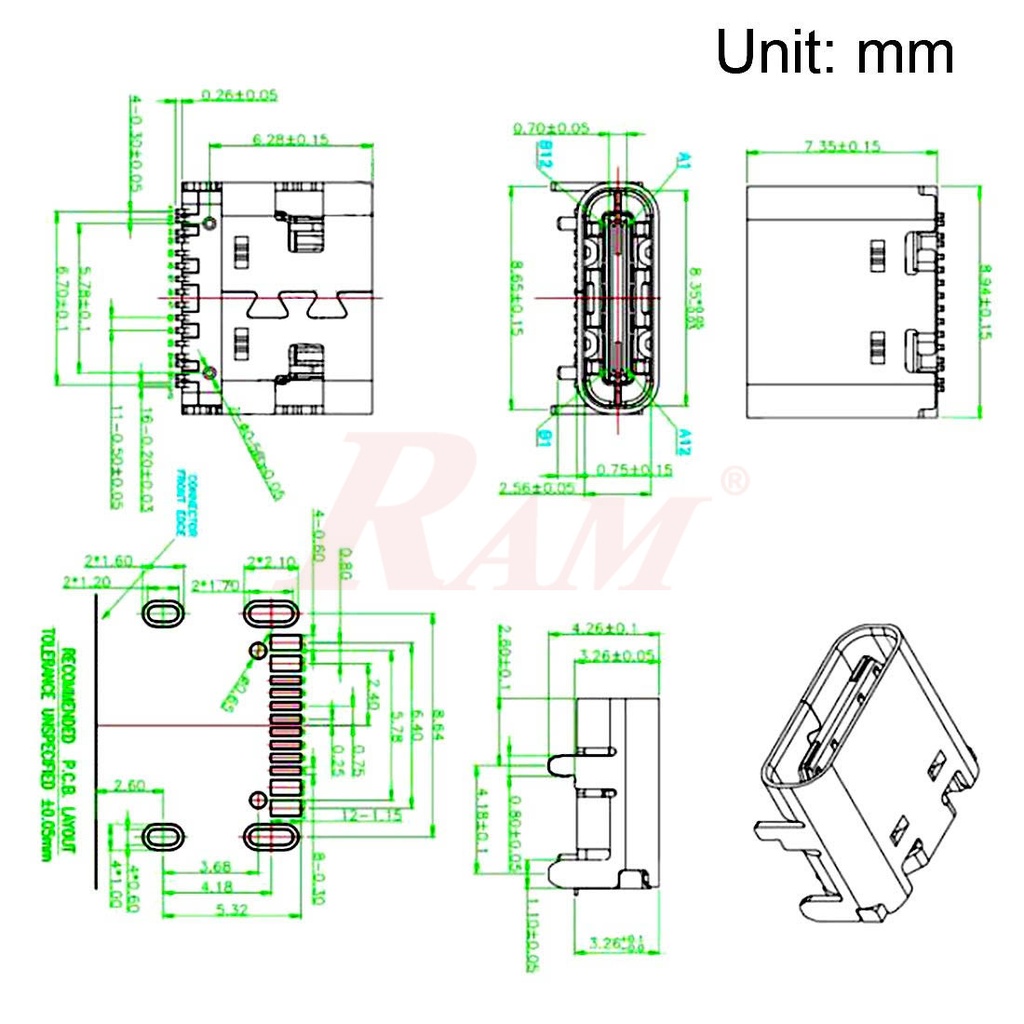

General Specifications

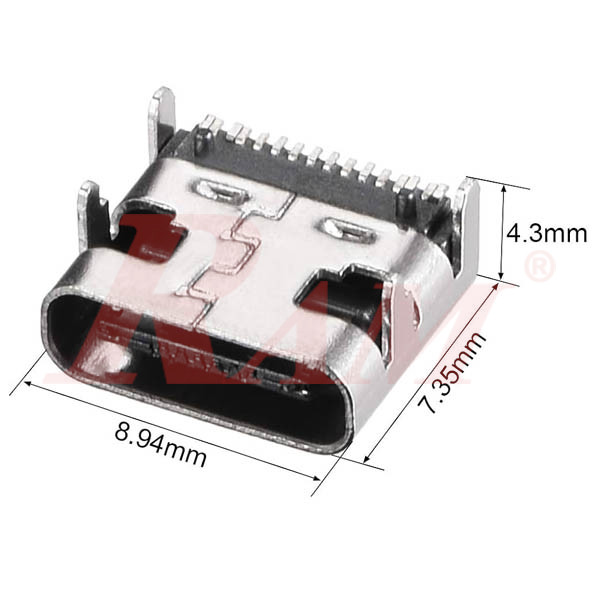

  • Item: 1 row SMT, 16-position, On-board Receptacle Connector
  • Rated Current: 5 A Maximum (Vbus)
  • Number of Contacts: 16 position
  • Rated Voltage: AC20V r.m.s.
  • Contact Resistance: Initial 40mΩ max.
  • Dielectric Withstanding Voltage: AC100V r.m.s. (1 minute)
  • Insulation Resistance: 100 MΩ min.
  • Operating Temperature Range: -40°C ~ +85°C
  • Durability: 10,000 times
