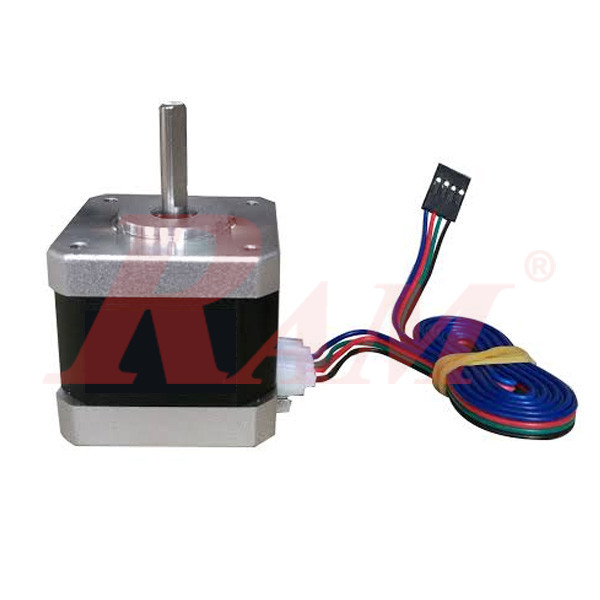

Open-loop stepper motor - NEMA 17 Frame Size 42x42mm
Technique specification:
- Step Angle: 1.8° (200 steps/rev)
- Frame Size: NEMA 17 (42.3mm × 42.3mm)
- Body Length (L): 40mm
- Rated Current: 1.7A/phase
- Phase Resistance: 1.5Ω
- Phase Inductance: 2.8mH
- Holding Torque: 40N·cm (0.4N·m)
- Detent Torque: 2.2N·cm
- Rotor Inertia: 54g·cm²
- Weight: 280g
- Shaft Diameter: 5mm (D-shaft with flat)
- Shaft Length: 24mm
