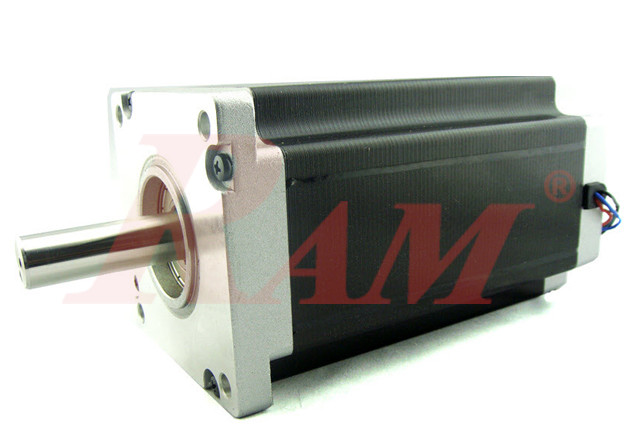

Stepper Motor (NEMA-42) 110HZ201-280
Holding Torque: 28 N.m
Current /phase: 8 A
Internal Reference:
STEP.110HZ201.280
Open loop stepper motor - Frame Size 110x110mm
Technique specification:
- Step Angle: 1.8°
- Current /phase: 8 A
- Resistance /phase: 0.67 Ω
- Inductance /phase: 12 mH
- Holding Torque: 28 N.m
- leads: 6 wires
- Motor Weight: 11.7 Kg
- Length: 201 mm
Technique parameters:
- Step angle accuracy: +/-5%,(full step,no load)
- Resistance accuracy: +/-10%
- Inductance accuracy: +/-20%
- Temperature rise: 80°C, rated current, 2 phase on
- Ambient temperature: -10°C-+50°C
- Insulation resistance: 100MΩMin.,500VDC
- Dielectric strength: 500VAC for one minute
- Shaft radial play: 0.06Max(450g-load)
- Shaft axial play: 0.08Max(450g-load)
