Description:

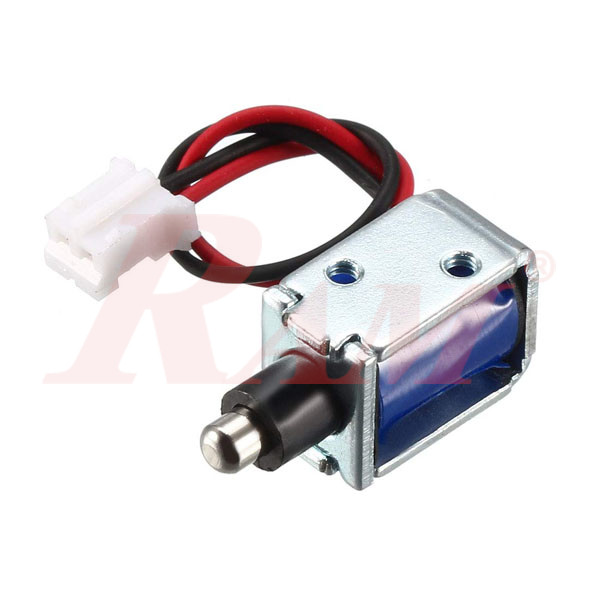

This compact and lightweight solenoid lock is designed for electric cabinets, lockers, and access control systems. When powered with DC 5V, the lock pulls the plunger inward by 3mm, allowing door release. Once power is removed, the internal spring returns the plunger to the locked position.
Product Overview
- Product Name: DC 5V 1A 30g 3mm Mini Electromagnetic Solenoid Lock Pull Type for Electric Lock Cabinet Door Lock
Specifications
- Voltage & Current: DC 5V, 1A
- Stroke (Travel Distance) & Force: 3mm, 30g
- Action Type: Pull
- Energized Forms: Intermittent

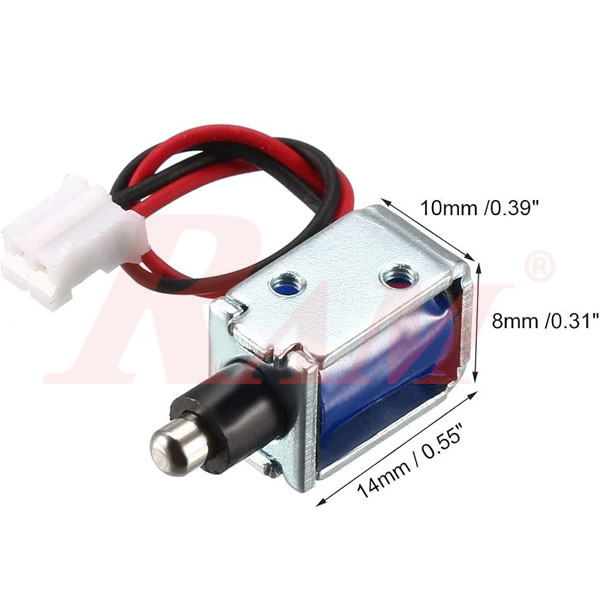

- Body Size: 14 x 10 x 8mm
- Plunger Bar Diameter: 3mm
- Material: Copper
- Style: Modern
- Special Feature: Lightweight
- Number of Pieces: 1
- Package Content: 1 x Electromagnetic Solenoid Lock
Features
- Easy Installation: Simple structure saves time and energy during installation.
- Sturdy and Durable: Effectively protects valuable objects and ensures long-term use.
- Compact Design: Small size and light weight make it ideal for small boxes or cabinets, such as deposit boxes, cabinets, safes, etc.
Usage Instructions

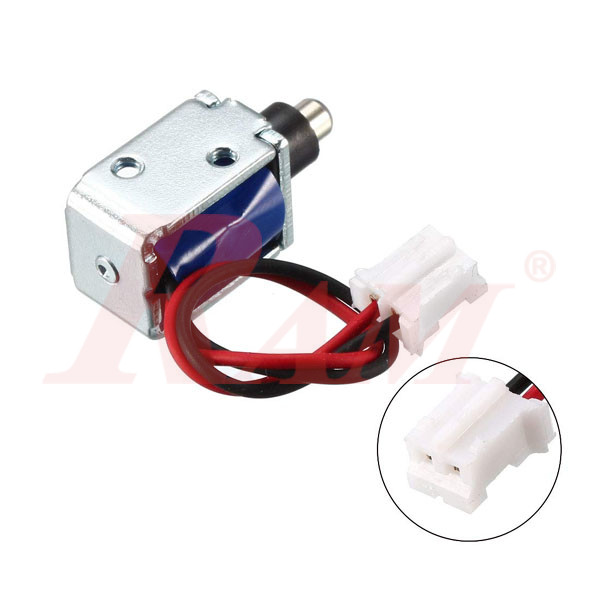

- The red and black wires are the power cords of the electromagnetic lock.

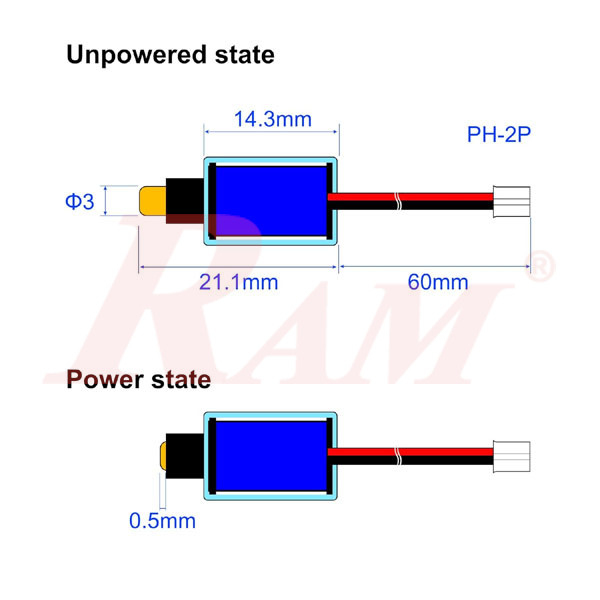

- When the switch is turned on, the locking tongue retracts 3mm, opening the cabinet door.
- When power is not supplied, the locking tongue extends 3mm by internal spring force, locking the cabinet door
Applications:
- Home security systems
- DIY electronic projects
- Access control systems
- Small businesses requiring secure cabinet or storage unit access
