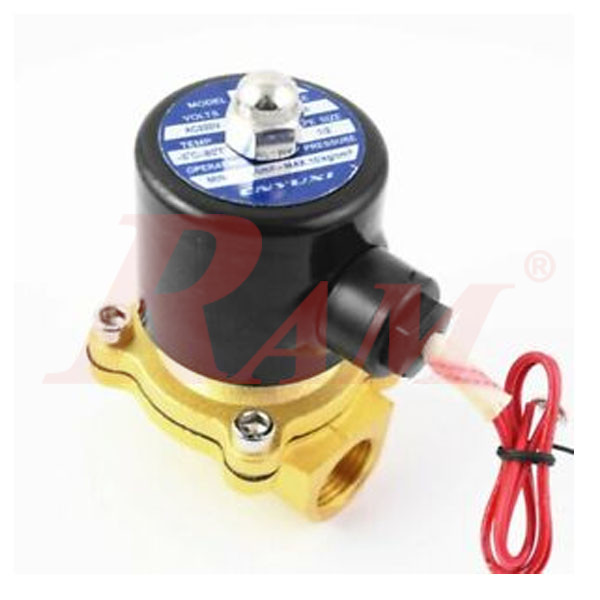

Solenoid Valve 12Vdc Copper Pipe 1/2"

Basic Parameters:

• Type: Normally closed
• Use directly driven diaphragm structure to start without pressure, the flat diaphragm structure is reliable for opening and closing.
• Flowing direction should match the sign on the valve.
• Assembling way: Horizontal mounting. Solenoid valve coil should be in an upright position. The valve can’t be installed in a place splashing water or water leakage. Using liquid viscosity <20CST.
• Should do cleaning treatment for dirty media (should cover a 80-100 mesh/inch filter). Should regularly clean the piston and surface dirt of a movable iron core in use. Should also check the sealing pad in disassembling and damaged parts found should be replaced in time
• This valve is not suitable for use in explosive and dangerous situations.
• Valve size, 111*55*102(mm)

Technical Parameters:

• Body Material: Brass
• Material of film: NBR
• Working voltage: DC12V
• Orifice diameter: 16mm
• Temperature of media: -5 ~80 Degrees C
• Pressure range: 0 ~ 10 Kg/cm2
• Pipe size: G 1/2″ inside screw
