Product Overview:

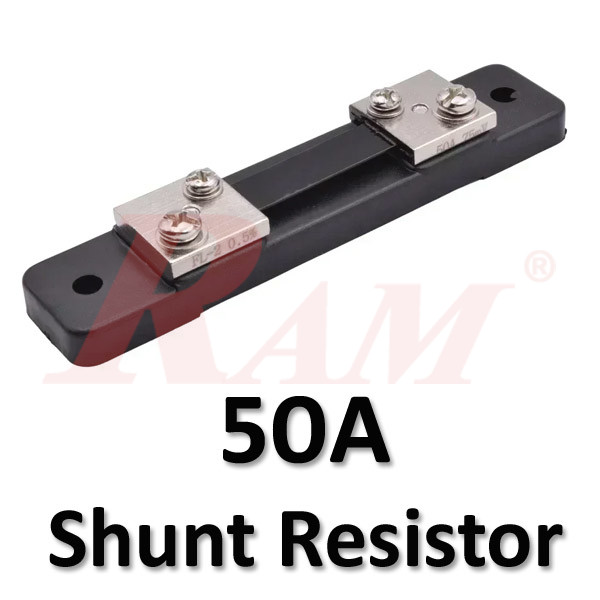

The FL-2 DC 75mV 50A Shunt Resistor is designed for precise current measurement in DC circuits. By generating a voltage drop proportional to the current flow, it enables accurate readings when paired with analog or digital ammeters. This shunt resistor is ideal for applications requiring reliable current monitoring, such as power supplies, battery chargers, and DC motor controls.
Key Features:
- Rated Current: 50A
- Voltage Drop: 75mV
- Accuracy Class: 0.5% (for currents up to 4000A)
- Material: Copper with Manganin alloy for stable resistance
- Operating Temperature: -40°C to +60°C
- Humidity Tolerance: ≤95% RH at 35°C (non-condensing)
- Overload Capacity: 120% of rated current for 2 hours
- Mounting: Two mounting holes for secure installation
-

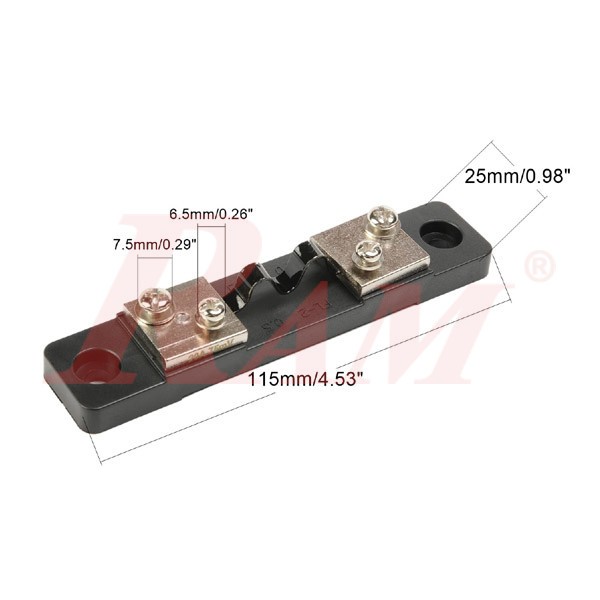

Over All Dimensions: Approximately 115 x 25 x 20 mm
Applications:
- DC ammeters and voltmeters
- Battery management systems
- Solar power systems
- Electric vehicle charging stations
- Industrial automation equipment
Installation Notes:
- Connect the shunt in series with the load so that the current flows through the shunt.
- Ensure proper polarity when connecting to measurement devices.
- Regularly inspect connections to maintain measurement accuracy.
