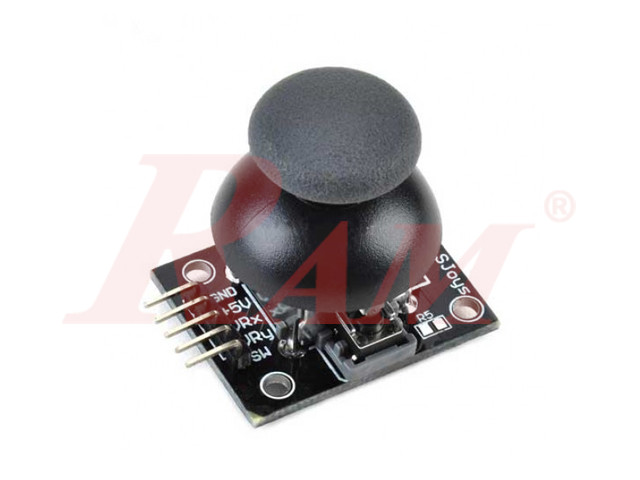

Thumb Joystick 2 Axis Analog Output (SKU#SF9032)
Internal Reference:
SF9032
Description
This is a joystick very similar to the 'analog' joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers - one for each axis. Pots are ~10k each. This joystick also has a select button that is actuated when the joystick is pressed down.
Features
- Two independent 10K potentiometers with common ground
- Spring auto return to center
- Comfortable cup-type knob
- Switch
- Connector: +5Vcc - GND - VRx - VRy – SW
Key Specifications
Power: 0.01W Interface: Dual 10K potentiometers with common ground Operating temp range: +32°F to +158°F (0°C to +70°C)
- GND: ground
- +5V: 5V DC
- VRx: voltage proportional to X position
- VRy: voltage proportional to Y position
- SW: switch pushbutton
