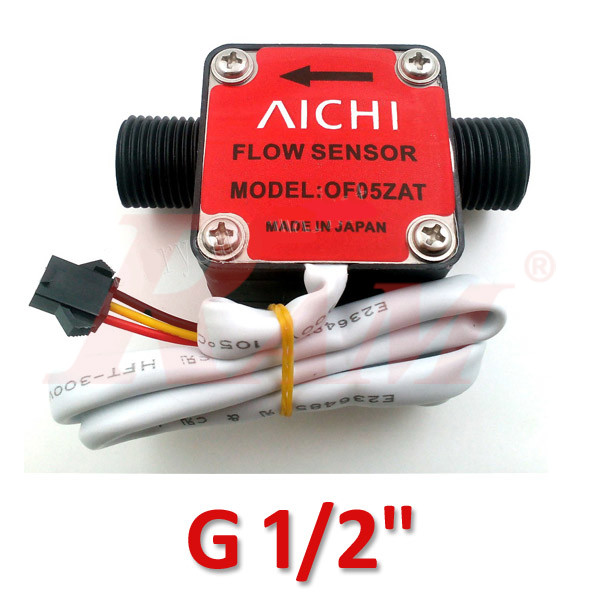

OF05ZAT G1/2" Flow Meter Sensor With High Precision Gear For High Density Liquids

High-precision Gear Flowmeter For Oil, Milk, Honey, and any high-density Liquid Flow Sensor 1.0Mpa.

Specifications:

• Model Number: OF05ZAT
• Product: Gear Flowmeter Sensor
• Max. Pressure: 1.0 Mpa
• Used Temp.: -10 To 70C Degree
• Use For: Oil / Milk / Honey High-Density Liquid
• Dimension : 80*45*35mm(L*W*H)
• Cable Length: Approx. 50CM (SM2.54 Plug)

Features

OF-Z flow sensor is suitable for measuring oil (heavy oil, light oil, heating oil, etc.). It is a flow sensor with elliptic gears that measures microflow with accuracy.

• Measures heavy, light, heating oil, etc.
• Measures the microflow range with superior manufacturing technology.
• Good at measuring pulsating flow.
• Amplifier's built-in magnetic sensor, which is strong against noise, is output in proportion to the flow velocity.
• Pulse output by open collectors or voltage pulse.
• Measures a wide range of flow rates with high accuracy.
• Simple structure due to the elliptic gears employed as a measuring principle.
• Capable of measuring various liquids.
• RoHS compliant (Complies with the RoHS directive to address the environmental issues.)

For many flow meters, the flow rate \( Q \) can be calculated using the following equation:

[Q = A \cdot v\]

Where:

• \( Q \) = flow rate (typically in cubic meters per second, m³/s)
• \( A \) = cross-sectional area of the flow path (in square meters, m²)
• \( v \) = velocity of the fluid (in meters per second, m/s)
