Description:
Sharp’s GP2Y10 is an optical air quality sensor, designed to sense dust particles. An infrared emitting diode and a phototransistor are diagonally arranged into this device, to allow it to detect the reflected light of dust in air. It is especially effective in detecting very fine particles like cigarette smoke and is commonly used in air purifier systems.
The sensor has a very low current consumption (20mA max, 11mA typical), and can be powered with up to 7VDC. The output of the sensor is an analog voltage proportional to the measured dust density, with a sensitivity of 0.5V/0.1mg/m3.
Specifications:
- Power supply voltage: 5-7 Vdc
- Operating temperature:10-65 degrees Celsius
- Current consumption: 20mA maximum
- The smallest particles detected value: 0.8 micron
- Sensitivity: 0.5V/(0.1mg/m3)
- Cleanair voltage: 0.9V typical
- Operating temperature:10~65°
- Storage temperature:20~80°
- Service life: 5 years
- Size: 46mmx30mmx17.6mm
- Weight: 15G

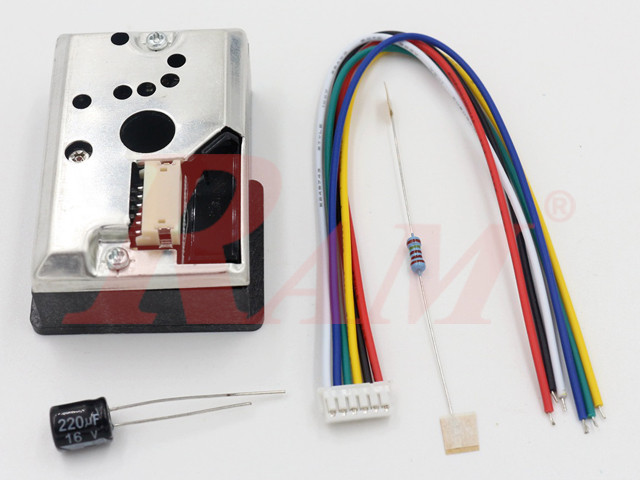

Package Include:
- GP2Y1010AU0F dust sensor
- 150ohm resistor
- 220uF cap
- 6pin connector
