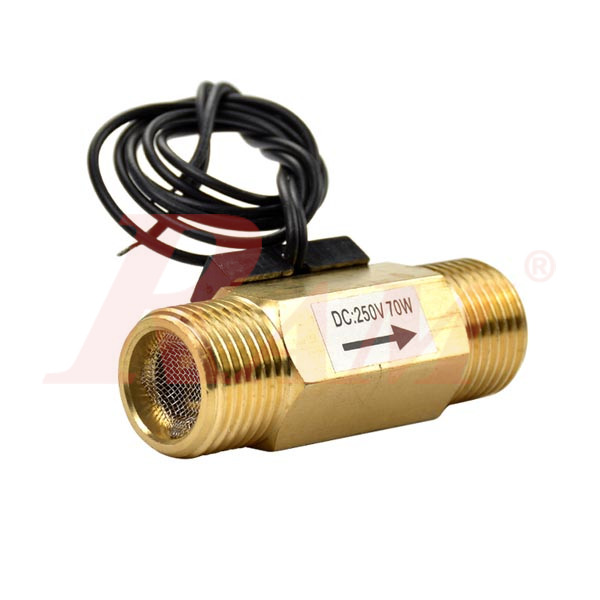

DN15 G1/2" Brass Flow Sensor Copper Hall Effect Liquid Water Flow Sensor Switch Flow Meter Magnetic Type Fluid Flowmeter Counter
Feature:
- Switch for the import reed switch
- Stable, durable, No standby power
- Small flow start, large flow
- Suitable for water industry and other fields such as drinking fountains, Water heaters, washing machines, wall hangers, electromagnetic water heaters, water drinkers, and water purifiers.
Specification:
- Name: Flow switch sensor
- Product Features: The use of a pair of permanent magnet float magnetic repulsions and the impact of water flow interaction with the reed switch output switching signal.
- Product material: copper
- Size:20.5x62mm
- Internal dental interface: G1/2”
- Start flow:1.2L/min
- The maximum flow:12L/min
- Work pressure:0.05-1.2MPA
- Maximum pressure:15M
- Use of media: tap water
- Operating temperature: long-term use temperature at 60 ℃
- Installation: The product arrow into the water direction, horizontal and vertical installation
- Switching power: high voltage normally open 70W
- The maximum voltage: DC250V
- Breakdown voltage: DC20V
- The maximum current: DC0.4A
- Load current: 0.5A
- Contact resistance: 0.2 Ω
- Temperature range: 40-60℃
