BPW34 Photodiode - High Sensitivity Light Sensor

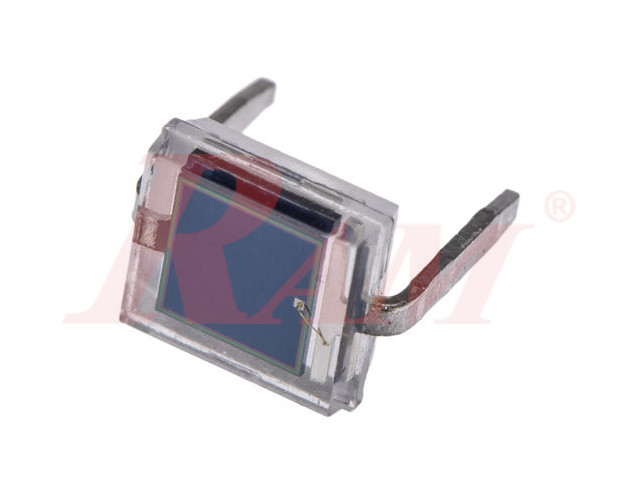

BPW34 Silicon PIN Photodiode

This top-view leaded photodiode boasts rapid response (~20–100 ns), broad spectral sensitivity (430–1100 nm, peak ~900 nm), and a generous 7.5 mm² active area. With low dark current (~2 nA), high reverse voltage tolerance (60 V), and a wide ±65° angle of half sensitivity, the BPW34 is engineered for fast and reliable light detection—ideal for optical communication, IR sensing, robotics, and industrial control applications.

Technical Highlights

• Silicon PIN photodiode in leaded top-view package (5.4 × 4.3 × 3.2 mm)
• Active photosensitive area: 7.5 mm²
• Spectral range: 430–1100 nm (peak ~900 nm)
• Typical dark current: ≤2 nA (Vr = 10 V, 25 °C)
• Open-circuit voltage ~350 mV and short-circuit current ~47 μA at 950 nm, 1 mW/cm²
• Fast response: rise/fall times ~20 ns
• Wide field-of-view: ±65°
• Electrical ratings: reverse voltage up to 60 V; capacitance ~70 pF at 1 MHz
• Temperature range: −40 °C to +100 °C
• Lead-free and RoHS compliant
