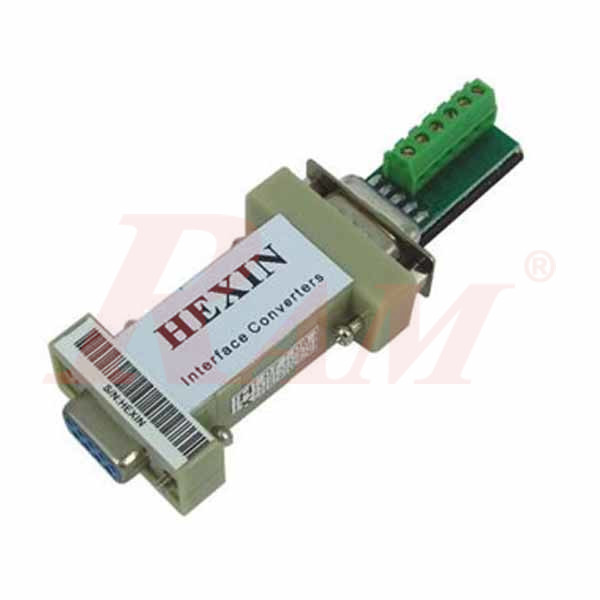

HXSP-485A - RS232 to RS485 Converter
Internal Reference:
RS232TORS485.CONVERTER
- Bi-directional connector convert between RS-232 and RS-485
- Port-Powered, no need for extra power supply
- Support 0~115200bps baud rate
- Low power consumption
Specification & Feature
Standard | Compliant with EIA RS-232, RS-485 standards |
Interface | RS-232: DB9 interface RS-485: Industrial terminal block |
Baud Rate | 0~115200bps |
Serial port | 1 port RS-232 DB9, 1 port RS-485(DB9 with block) |
RS-232 signal | TXD, RXD, GND |
RS-485 signal | 485+, 485-, GND |
Distance | RS-232: 5m RS-485: 1200m |
Working mothod | asynchronous, point-to-point or multi-point, 2-wire half-duplex |
Transmission medium | Ordinary Line, twisted pair cable or Shielded Wire |
Communication protocol | Transparent |
Direction control | automatic data flow control technology which can detect and control data transmission direction automatically |
Power | No power supply, Obtain power from TXD, RTS, DTR signals of RS-232 serial port |
Environment | Operating temperature: -20~70℃ Storage temperature: -25~85℃ Relative humidity: 5%～95%(no condensation) |
Shell | plastic |
