Product Description

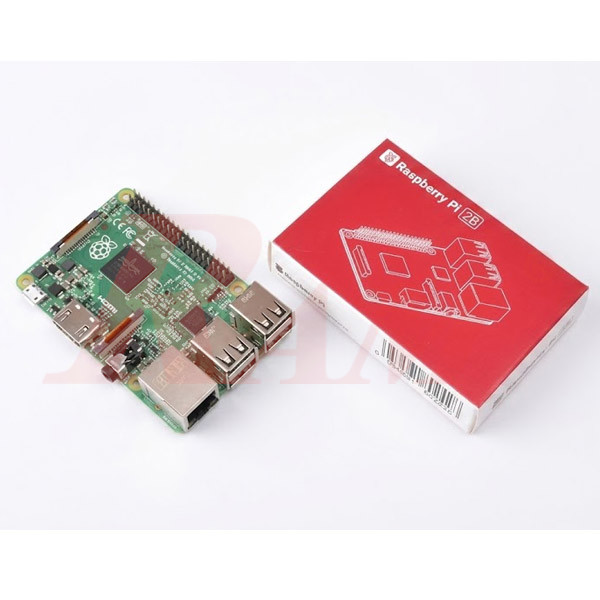

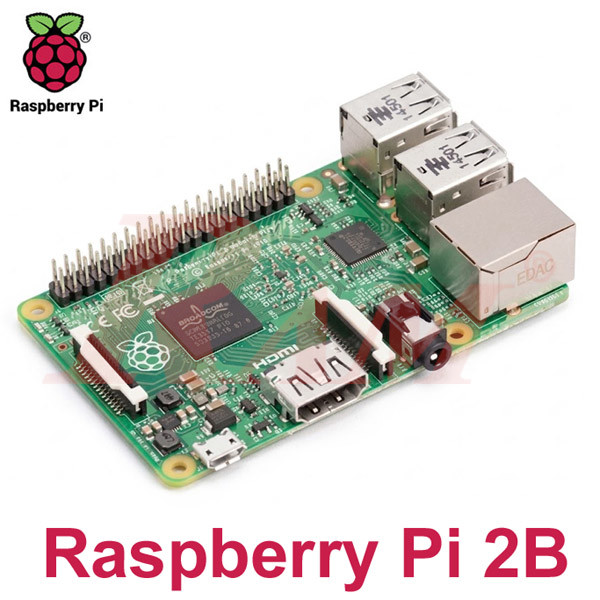

The Raspberry Pi 2 Model B is the second-generation Raspberry Pi single-board computer, designed to provide significantly improved processing performance while maintaining compatibility with the Raspberry Pi ecosystem.
The original Raspberry Pi 2 Model B was introduced with a 900MHz quad-core ARM Cortex-A7 processor and 1GB of LPDDR2 RAM, providing a substantial performance improvement over the previous Raspberry Pi generation. Later revisions of the Raspberry Pi 2 Model B use the BCM2837/B0 processor with a quad-core 64-bit ARM Cortex-A53 CPU.
The board provides a 40-pin GPIO header for connecting sensors, displays, motors, relays, and other electronic modules. It also includes four USB 2.0 ports, 100Mbps Ethernet, a full-size HDMI port, a microSD card slot, and dedicated CSI camera and DSI display interfaces.
With its compact form factor and extensive connectivity, the Raspberry Pi 2 Model B is suitable for a wide range of applications including embedded computing, robotics, automation, education, media projects, networked devices, and prototyping.
Key Features
- Quad-core ARM processor for improved multitasking and computing performance
- 1GB RAM for running Linux-based applications and embedded software
- 40-pin GPIO header for hardware interfacing and expansion
- Four USB 2.0 ports for peripherals and accessories
- 100Mbps Ethernet for wired network connectivity
- Full-size HDMI output for connecting displays
- Dedicated CSI camera interface
- Dedicated DSI display interface
- MicroSD card slot for operating system and data storage
- VideoCore IV 3D graphics processor
- Compatible with a wide range of Raspberry Pi software, operating systems, accessories, and expansion boards
- Compact single-board computer design suitable for embedded applications
Technical Specifications
- Product Type: Single Board Computer
- Model: Raspberry Pi 2 Model B
- RAM: 1GB LPDDR2
- Processor:
- Original Revision 1.1: Broadcom BCM2836, Quad-Core ARM Cortex-A7, 900MHz
- Revision 1.2: Broadcom BCM2837, Quad-Core ARM Cortex-A53, 900MHz
- Revision 1.3: Broadcom BCM2837B0, Quad-Core ARM Cortex-A53, 900MHz
- GPU: Broadcom VideoCore IV
- GPIO: 40-pin GPIO header
- USB: 4 × USB 2.0
- Network: 10/100Mbps Ethernet
- Video Output: Full-size HDMI
- Camera Interface: CSI
- Display Interface: DSI
- Audio: 3.5mm audio and composite video jack
- Storage: MicroSD card
- Power Input: Micro USB
- Wireless Connectivity: Not built in
- Wi-Fi: Not built in
- Bluetooth: Not built in
- Operating System: Linux-based operating systems and compatible Raspberry Pi distributions
