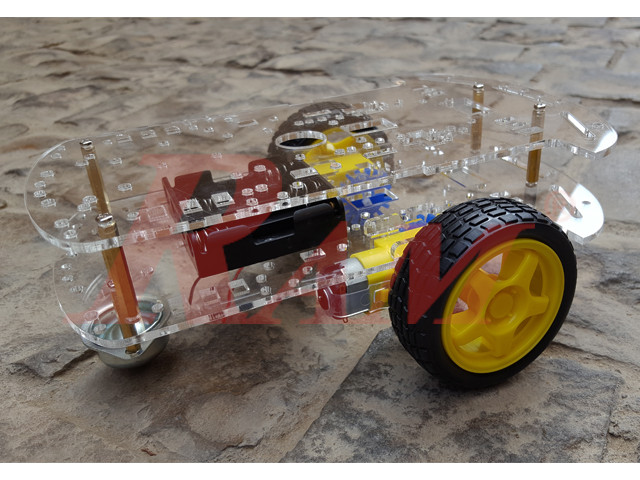

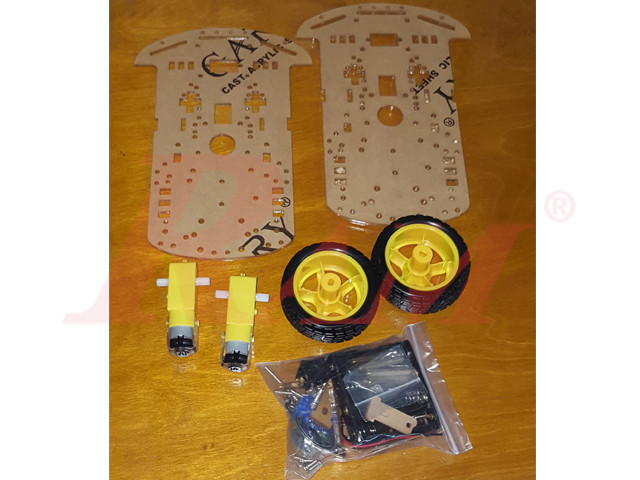

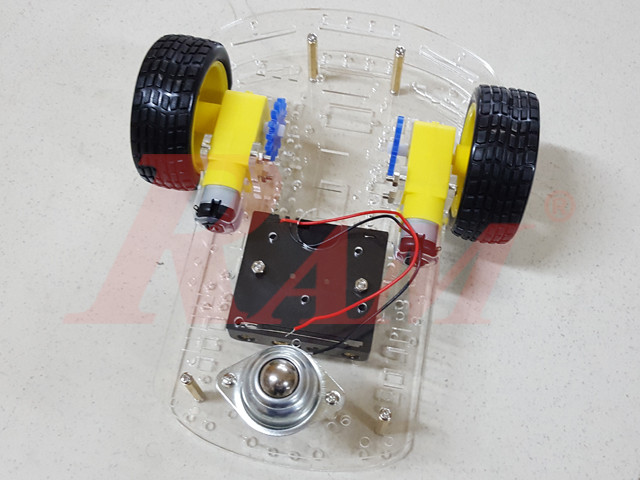

2WD Robot Car Chassis Kit with Speed Encoder Wheels 2 Floor

http://www.ram-e-shop.com/web/image/product.template/7171/image_1920?unique=e2c5923

Robot Smart Car 2WD
With Advanced Metal Roller Caster Wheel

350.00 EGP 350.0 EGP 350.00 EGP

350.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: RO.BASE.2WD.2FLOOR

This is an excellent rover robotics platform for those wanting to get started in machine control without spending a lot of money.

Specifications:

Motors:

  • Suggested Voltage:4.5V DC (works well from 3-6V)
  • No load Speed:90±10rpm (speed depends on input voltage)
  • No Load Current:190mA(max.250mA)
  • Torque:800gf.cm min
  • Stall current approx 1A

Wheels:

  • 65mm diameter, 30mm width
  • Plastic rims with solid rubber tires
  • The caster Wheel in the front

Chassis:

  • Laser cut acrylic - 2-floor
  • Metal standoffs caster wheel
