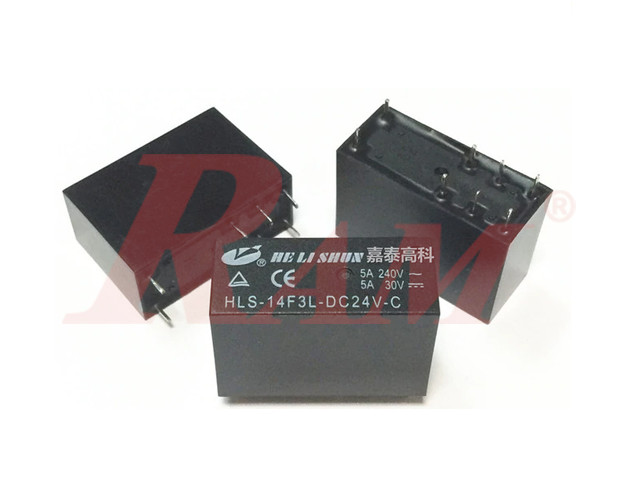

Re9-Relay 24V 8pin 5A (Double Contact)

https://www.ram-e-shop.com/web/image/product.template/5751/image_1920?unique=8c5f8e4

HLS-14F3L-DC24V-C

45.00 EGP 45.0 EGP 45.00 EGP

45.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: RE9

CONTACT DATA:

Contact Form1A /1C
Contact MaterialAg Alloy
Contact Ratings5A 240VAC/5A 30VDC
Max Switching Voltage250VAC/110VDC
Max Switching Current5A
Max Switching Power1250VA/150W
Initial Contact Resistance100m Ω Max at6VDC 1A
Life Expectancy Electrical100,000 Operations (rated load)
Life Expectancy Mechanical10,000,000 Operations (no load)

GENERAL DATA :

Insulation Resistance1000M Ω Min at500VDC
Dielectric Strength Between Open Contacts1000VAC 50-60HZ( 1 minute)
Dielectric Strength Between Contacts And Coil5000VAC 50-60HZ( 1 minute)
Operate Time15ms max
Release Time8ms max
Ambient Temperature-30 ℃ to+70 ℃
Shock ResistanceMalfunction: 10G

COIL DATA: (@20 ℃ ):
