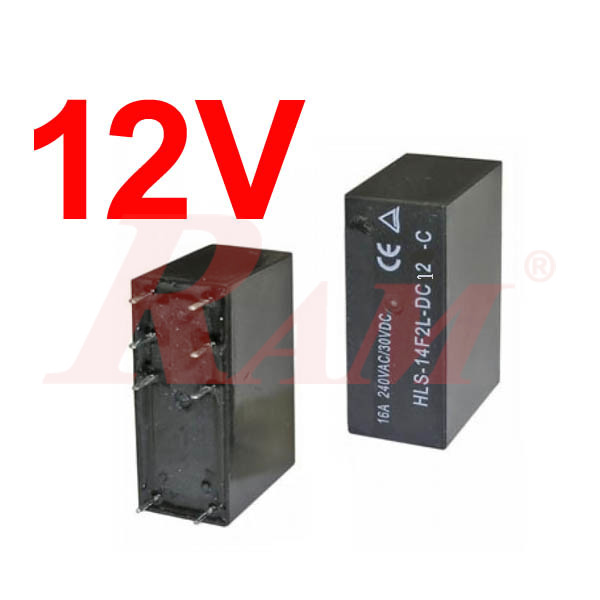

Re8-Relay 12V 8pin 16A (Single Contact)

https://ram-electronics.odoo.com/web/image/product.template/7459/image_1920?unique=8c5f8e4

HLS-14F2L-DC12V-C

45.00 EGP 45.0 EGP 45.00 EGP

45.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: RE8.12VDC

Dimension: 29 x 12.6 x 20 mm

Contact Data:

  • Contact Material: Ag Alloy
  • Contact Ratings:
  • 16A 240VAC / 16A 30VDC
  • Max Switching Voltage: 250VAC/110VDC
  • Max Switching Current: 16A
  • Max Switching Power: 2500VA/300W
  • Initial Contact Resistance: 100mΩ Max

Life Expectancy:

  • Electrical: 100, 000(Rated Load)
  • Mechanical: 10, 000, 000(No Load)

Coil Data:

  • Rated Voltage: 12VDC
