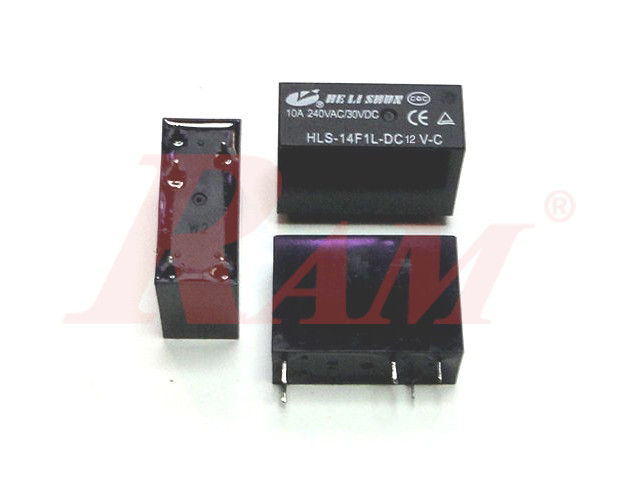

Dimension: 29 x 12.6 x 20.6 mm
Contact Data:
- Contact Material: Ag Alloy
- Contact Ratings:
- 10A 240VAC / 10A 30VDC
- Max Switching Voltage: 250VAC/110VDC
- Max Switching Current: 10A
- Max Switching Power: 2500VA/300W
- Initial Contact Resistance: 100mΩ Max
Life Expectancy:
- Electrical: 100, 000(Rated Load)
- Mechanical: 10, 000, 000(No Load)
Coil Data:
- Rated Voltage: 12VDC
