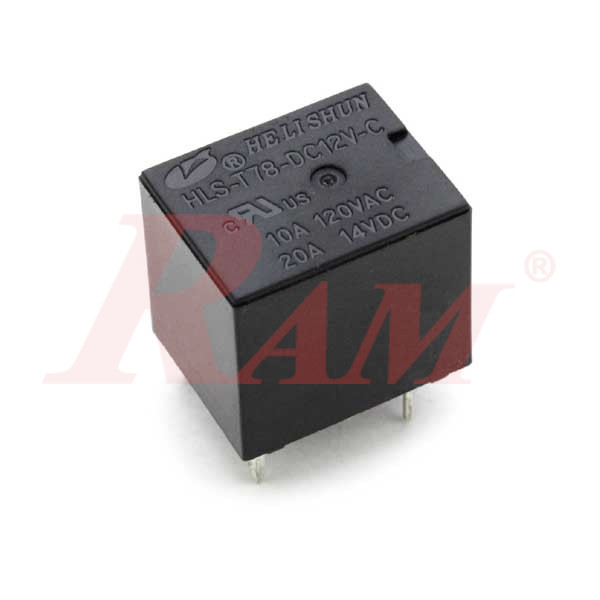

- Coil 12Vdc
- Contact 10A/120VAC
- 10A/14VDC
CONTACT DATA :
| Contact Form | 1A/1B/1C |
| Contact Material | Ag Alloy |
| Contact Ratings | NO:20A 14VDC/10A120VAC |
| NC:12A 14VDC/10A120VAC 1C:7A 120VAC | |
| Max Switching Voltage | 16VDC/120VAC |
| Max Switching Current | 25A |
| Max Switching Power | 840VA/400W |
| Initial Contact Resistance | 100m Ω Max at6VDC 1A |
| Life Expectancy Electrical | 100,000 Operations (rated load) |
| Life Expectancy Mechanical | 10,000,000 Operations (no load) |
GENERAL DATA:
| Insulation Resistance | 100M Ω min at500VDC |
| Dielectric Strength Between Open Contacts | 500VAC 50-60HZ( 1minute) |
| Dielectric Strength Between Contacts And Coil | 500VAC 50-60HZ (1 minute) |
| Operate Time | 10ms max |
| Release Time | 5ms max |
| Ambient Temperature | -40 ℃ to+85 ℃ |
| Shock Resistance | Malfunction: 10G |
| Destruction: 100G | |
| Vibration Resistance | 10-55Hz,1.5mm double amplitude |
| Ambient humidity | 40-85% RH |
| Weight | Approx 6g |
| Safety Standard | UL |
COIL DATA : (@20 ℃ )
