RXN305D-II Linear Triple Output DC Programmable Power Supply 0~30V 0~5A

https://www.ram-e-shop.com/web/image/product.template/7144/image_1920?unique=df9fc8c PS.RXN305D.II

DC Adjustable Linear Power Supply
Two Isolated Ground Adjustable 0-30V/0-5A outputs + One Fixed 5V/3A output

7,500.00 EGP 7500.0 EGP 7,500.00 EGP

7,500.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: PS.RXN305D.II

RXN305D-II Linear Triple Output DC Programmable Power Supply 0~30V 0~5A


Product Description

The RXN-305D-II is a three-circuit linear regulated DC power supply designed for electronics laboratories, research and development, circuit testing, and repair applications.

It features two independently adjustable DC outputs, each providing 0–30V and 0–5A, along with an additional fixed 5V / 3A output for powering digital circuits and electronic devices.

The two adjustable outputs can operate independently or be configured in series tracking mode to provide a combined output of up to 0–60V, or in parallel mode to provide up to 0–10A at 0–30V. This flexible configuration makes the RXN-305D-II suitable for applications requiring multiple power rails or higher output voltage and current.

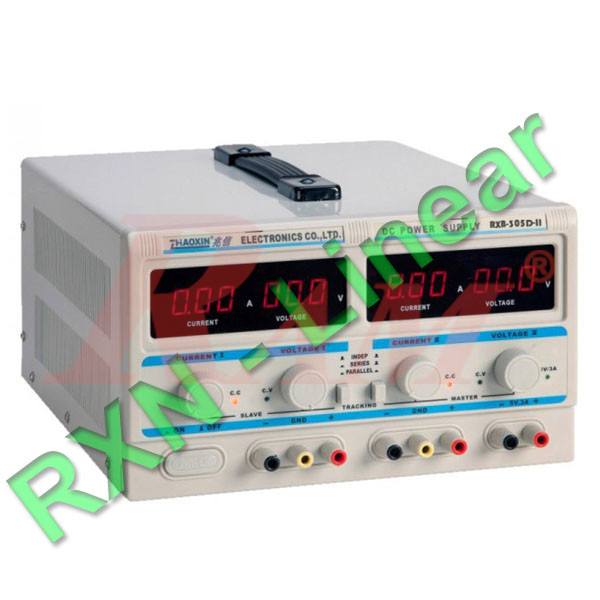

The front panel features separate voltage and current adjustment controls for each adjustable circuit, dual three-digit LED displays, CV and CC status indicators, and dedicated output terminals. The unit also includes cooling fans and a rear AC power connection.

Key Features

  • Three Output Circuits: Two adjustable DC outputs and one fixed 5V output.
  • Dual Adjustable Outputs: Each adjustable circuit provides 0–30V and 0–5A.
  • Series Tracking Mode: Combines the two adjustable outputs to provide up to 0–60V at 0–5A.
  • Parallel Tracking Mode: Combines the two adjustable outputs to provide up to 0–30V at 0–10A.
  • Fixed 5V Output: Dedicated 5V / 3A output for powering electronic circuits and devices.
  • Independent Operation: Both adjustable outputs can operate separately.
  • Automatic CV/CC Operation: Each adjustable output supports Constant Voltage (CV) and Constant Current (CC) operation.
  • Current Preset: Set the desired current limit before connecting the load.
  • Dual LED Displays: Separate three-digit displays for monitoring the two adjustable output circuits.
  • Separate Voltage and Current Controls: Individual adjustment knobs for each adjustable output.
  • CV/CC Indicators: Front-panel indicators show the operating mode of each adjustable circuit.
  • Cooling Fans: Rear-mounted fans help dissipate heat during operation.

Technical Specifications

ParameterSpecification
SeriesRXN Series
ModelRXN-305D-II
Product TypeLinear Regulated DC Power Supply
Output Circuits3 (2 Adjustable + 1 Fixed)
Adjustable Output Channels2
Independent Output (Each Channel)0–30V / 0–5A
Series Output0–60V / 0–5A
Parallel Output0–30V / 0–10A
Fixed Output5V ±0.25V / 3A
Fixed Output Power Regulation≤5mV
Fixed Output Load Regulation≤15mV
Input Voltage OptionsAC 220V ±10%, 50Hz
CV Voltage Stability≤0.01% + 2mV
Negative Voltage Stability≤0.01% + 2mV
CV Ripple Noise≤2mVrms
CC Current Stability≤0.1% + 3mV (as printed in manufacturer's table)
CC Load Stability≤0.2% + 3mV (as printed in manufacturer's table)
CC Ripple Noise≤2mArms
Tracking Operation AccuracySlave circuit error ≤0.5% + 10mV
Series/Parallel Adjustment Rate≤300mV
DisplayDual 3-Digit LED Displays
Display Accuracy±1% ±1 digit
Display ResolutionVoltage: 0.1V / Current: 0.01A
Operating Temperature-10°C to 40°C
Operating Relative HumidityLess than 90% (manufacturer's model table)
Storage Temperature-10°C to 40°C
Storage Relative HumidityLess than 80% (manufacturer's model table)
CoolingRear Cooling Fans
Weight10.84kg

Applications

  • Electronics Laboratories: Providing multiple DC power rails for experiments and circuit development.
  • Research and Development: Testing electronic prototypes and circuits requiring different voltage levels.
  • Electronic Circuit Testing: Supplying independent or combined DC outputs for testing.
  • Dual-Voltage Projects: Powering circuits that require two separate adjustable voltage sources.
  • Operational Amplifier and Analog Circuits: Providing separate supply rails using series tracking operation.
  • High-Current Applications: Using parallel tracking mode to provide up to 10A at 0–30V.
  • Digital Electronics: Using the dedicated fixed 5V / 3A output to power compatible electronic devices.

Package Contents

  • RXN-305D-II Power Supply ×1
  • AC Input Power Cable ×1
  • User Manual ×1

Frequently Asked Questions (FAQ)

1. How many output channels does the RXN-305D-II have?

It has three output circuits: two adjustable DC outputs and one fixed 5V / 3A output.

2. What is the output range of each adjustable channel?

Each adjustable channel provides 0–30V DC and 0–5A when operating independently.

3. Can the two adjustable outputs be connected in series?

Yes. Series tracking mode combines the two adjustable outputs to provide a voltage range of up to 0–60V, with a maximum current of 5A.

4. Can the two adjustable outputs be connected in parallel?

Yes. Parallel tracking mode combines the two adjustable outputs to provide up to 10A at 0–30V.

5. What is the fixed output voltage and current?

The dedicated fixed output provides 5V with a maximum current of 3A. Its specified voltage tolerance is ±0.25V.

6. Can both adjustable outputs operate independently?

Yes. In independent mode, each adjustable circuit operates as a separate DC power supply, allowing different voltage and current settings.

7. Does the RXN-305D-II support Constant Voltage and Constant Current modes?

Yes. Both adjustable outputs support CV and CC operation, with automatic switching according to the connected load and preset current limit.

8. What is the difference between series and parallel tracking modes?

Series tracking mode combines the two adjustable outputs to increase the available voltage up to 60V. Parallel tracking mode combines their current capacity to provide up to 10A while maintaining an output voltage range of 0–30V.
