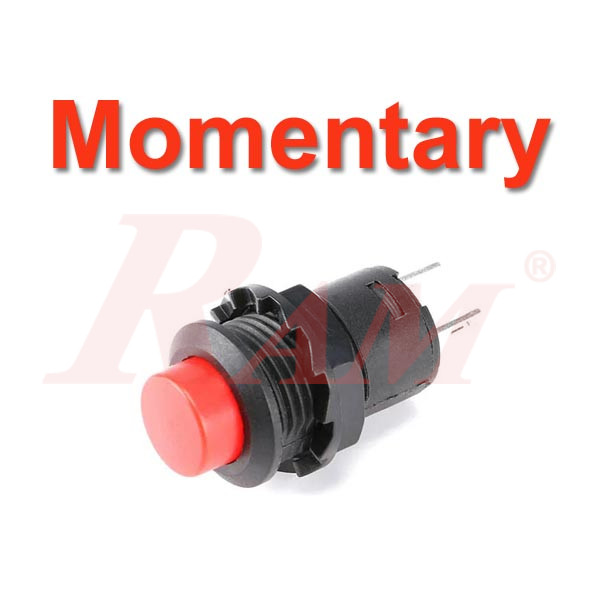

Switch Momentary DS-425 Red - Self Resetting

https://www.ram-e-shop.com/web/image/product.template/6454/image_1920?unique=de0c2ca

12.00 EGP 12.0 EGP 12.00 EGP

12.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: PRESS.DS318.TACK

Specifications:

  • Mounting dimensions φ12
  • Rating: 3A/125Vac 1.5A/250Vac
  • Contact resistance 50mΩ max
  • Insulation resistance 100MΩ min
  • Dielectric strength 2000Vac, 50Hz for 1min
  • Mechanical Life 2x105 cycles
  • Electrical life 5x104 cycles
  • IP degree IP40
  • Terminals 2 pin
  • Operation temperature -25 to 55℃
  • Operation humidity 45 to 85% RH, no-condensation
