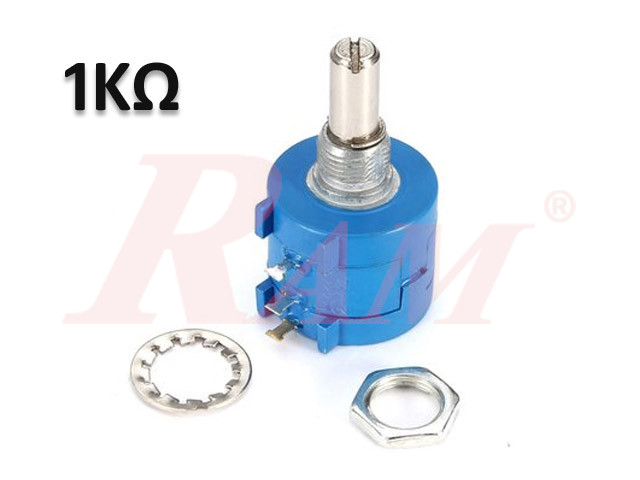

POT3590S - 1KΩ (102L) Rotary Wirewound Precision Potentiometer 10 Turns

https://www.ram-e-shop.com/web/image/product.template/7514/image_1920?unique=f336e26

1Kohm

135.00 EGP 135.0 EGP 135.00 EGP

135.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: POT.3590S.2.102L.1K

Features:

  • Series: 3590
  • Tolerance: ±5%
  • Power (Watts): 2W
  • Built-in Switch: None
  • Number of Turns: 10
  • Taper: Linear
  • Number of Gangs: 1
  • Adjustment Type: User Defined
  • Temperature Coefficient: ±50ppm/°C
  • Rotation: 3600°
  • Resistive Material: Wirewound
  • Termination Style: Solder Lug
  • Actuator Type: Slotted
  • Actuator Length: 20.63mm
  • Actuator Diameter: 6.34mm
  • Bushing Thread: 3/8-32
  • Mounting Type: Panel Mount
  • Size - Body: Round Dia 22.23mm
  • Base Product Number: 3590S

Download

​Datasheet
